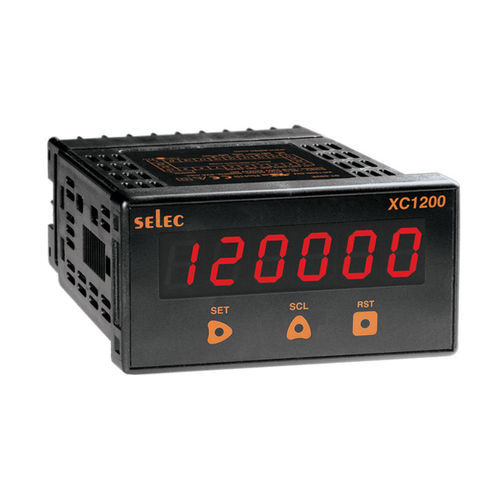

Pulse counter XC1200

timebinarydigital

• 6 digits Counter, 5 digits RPM Indicator • LED Indications : Relay1, Relay2 • Dual Set point, Programmable Input Scaling • Up, Down, Quadrature & Bi-directional Counting Direction Brief Specifications Display Type : LED Display Configuration : 6 Digits Counter, 5 Digits RPM Indicator Relay Contact : 2 C/O DPDT Range : Total: Least Count: 0.0001 , 0.001, 0.01, 0.1 Rate: 4 to 99999 Operating Modes : On Delay, Interval , Auto reset, Time pulse repeat Reset : Front (user selectable), Remote Counting Direction : Up, Down, Bi-directional, Quadrature Features : Memory Retention, 2 Set Points, Programmable Input Scaling Sensor type : NPN, PNP, potential free contacts, encoder Input Speed : a) 0 to 30Hz b) 0 to 2.5kHz c) 0 to 5kHz Supply Voltage : 90 to 270V AC / DC Size : 48 x 96mm Mounting Type : Panel mount Certification : CE
