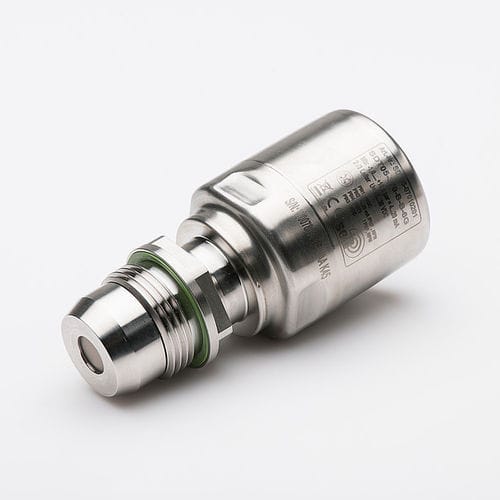

Relative pressure transducer SDT 05
ceramicanalogflush diaphragm

relative pressure transducer
relative pressure transducer
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Technology
ceramic
Output
analog
Mounting
flush diaphragm
Material
stainless steel
Other characteristics
precision, high-temperature
Pressure range

40 bar
(580.15 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 145 °C
(293 °F)

Description

Features high precision high temperature range pressure-resistance up to 40 bar gauge pressure programmable switch and analogue outlet flush mounted installation (ceramic) medium-affected components are made of ceramic (99.9% AI203), PTFE; V4A / 316L / 1.4435; housing made of stainless steel (1.4404); FPM (Viton); PTFE (Pocan); PEI; PFA FDA, EHEDG conform Technical specifications accuracy in accordance with IEC 60770: 0.2% long-term stability < ± 0.1% p.a. protected against polarity reversal and short circuit ambient temperature -25…80ºC storage temperature -40…100ºC substance temperature -25…125ºC (145ºC max. 1h) response time <3 ms protection class IP69K M12 plug-in connector, gold-plated contacts damping switch outlet (daP) [s] 0.00…30.00 damping analogue outlet (daP) [s] 0.01…99.99
