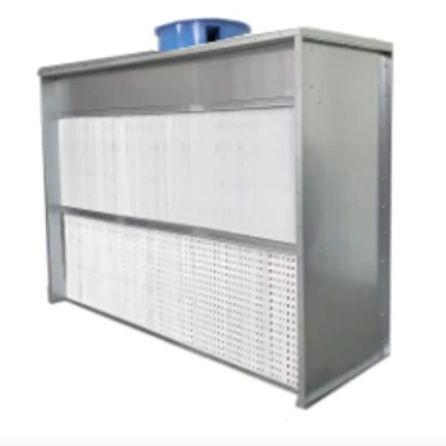

Open paint booth RM 400

for partsfor vehiclesfilter

Dimension painting filtering wall A : 4 000mm B: 1000mm C: 2100mm 22,500 m3/hour Filters: Longer life than other filters. Maximum retention capacity up to 23Kg/m2 Filtration up to 98% with Standard or ECO filters. Effective filtration up to 99% with Super Efficiency filters (high performance). Staple and glue assembly for greater strength and longer life. Fans: Belt with external motors, integrated hatches. The air flow is adapted depending on the surface of the filters. The motors are 380V but we can also offer them in 220V. Turbine with wing profile blade, with fixed or variable angle in stopped position, made of polypropylene or aluminum is connected directly or by belt pulley drive to the self-ventilated electric motor conforming to European standards. Manufacturing: Available as a simple to assemble galvanized steel kit Fully modular construction, Top mounted fans Option of explosion-proof motors. Low cost, easy to install filters. Supplied with push button starter(s). Simple and inexpensive maintenance. Panels. Complies with current health and safety legislation.
