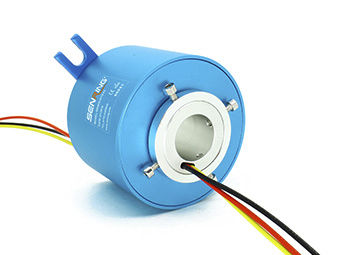

Through-hole slip ring 212004250 seriesaluminumstainless steelstandard
Add to favorites
Compare this product
Characteristics
- Construction
- through-hole
- Material
- aluminum, stainless steel
- Other characteristics
- standard, custom, high-current
- Voltage
690 V
- Primary current
250 A
- Rotational speed
250 rpm
(1,571 rad.min-1)- Number of channels
4 unit
Description
4 channels,maximum current 250A per channel;
SENRING 212004250 series High Current slip ring, hole size 25mm,OD 119mm,sipport 4 circuits (250A each) high current.If you need to combine other circuit/signal channel no.,customization available based on the standard model.
Features
High current,maximum current can reach 3000A per channel;
Aluminum or stainless steel housing;
Has the advantages of small contact resistance, low heat and long - term stable operation;
Integrated structure design,easy installation.
