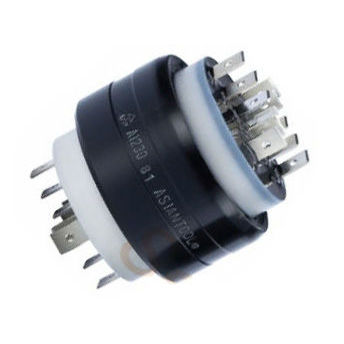

Aluminum alloy slip ring A1230 Series

stainless steelcoppermercury

12 circuit,30A per circuit SENRING A1230 series mercury slip ring,torque 2000x10-3Nm,can be transmit 12 circuits@30A power current. Application SENRING A1230 Series Mercury Slip Ring(12circuits@30A Power Current) slip ring is produced with special sealing materials,insolution and conductive technology,made of aluminum alloy or stainless steel,applied for any rotating objects of signal transmitting such as:tiny voltage, EMF, thermocouple, strain gauge,audio and video signals, high frequency, computer signals and electric power connections. Caution 1、Working temperature does not exceed 60℃,indoor temperature and self-heating (rotating and electric connection) 2、Vertical installation and storage should keep the UP towards direction 3、Installing the slip ring into the shafe should keep no eccentricity 4、Do not solder on the slip ring and copper terminals 5、Special connection terminals can't use reduplicate 6、Vibration will shorten the working life 7、The slip ring can be mounted by the body or plastic collar but it couldn't carry any mechanical loads.Another end should be connected floating hold by wires
