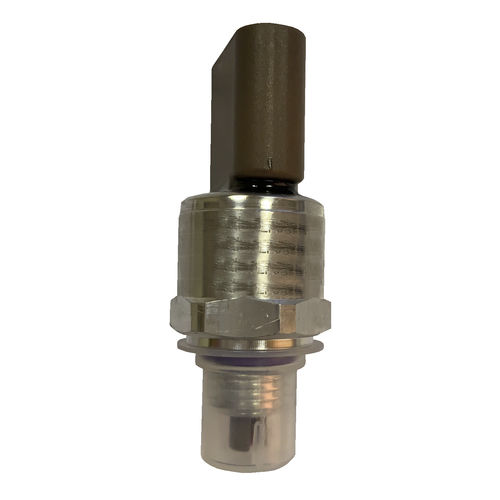

Pressure sensor with temperature sensor 0-5 V
absoluteceramicratiometric

Pressure sensor with temperature sensor - 0-5 V - SENSAGGIO SRL - absolute / ceramic / ratiometric
Pressure sensor with temperature sensor - 0-5 V - SENSAGGIO SRL - absolute / ceramic / ratiometric
Pressure sensor with temperature sensor - 0-5 V - SENSAGGIO SRL - absolute / ceramic / ratiometric - image - 2
Add to favorites
Compare this product

Characteristics

Pressure type
absolute
Technology
ceramic
Output
ratiometric
Mounting
threaded, insertion, PCB
Fluid
for gas, for liquids
Protection level
IP67, corrosion-resistant, EMC, rugged
Applications
for engines, for refrigeration circuits, for HVAC systems, for water treatment, for the petrochemical industry, for OEM, process
Other characteristics
with temperature sensor, OEM, combined, with amplified output, RoHS, temperature-compensated, with aluminum housing, digitally compensated, with selectable measurement range, high-resolution, fast response time, with diaphragm seal, fully-welded
Pressure range

Min.: 0 bar
(0 psi)

Max.: 37 bar
(536.64 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 140 °C
(284 °F)

Description

SPT SERIE: PRESSURE + TEMPERATURE SENSOR Pressure Sensor Solutions Piezoresistive Ceramic Technology The Sensaggio's P+T sensors are based on piezoresistive ceramic technology and thanks to their complete versatility it is possible to process the output signal according to the customer requests. It is available for high (0-37 bar) and low (0-11 bar) pressure applications. Strenght: the P+T sensor is able to work even in the harshest environmental conditions. Designed to overcome the toughest environmental and stress tests (Mechanical Shock tests, Vibration tests and Life Cycle Durability ) Hermetic connector IP67 - Anti rotation system APPLICATIONS - automotive and powertrain area - industrial/hydraulic sector - water control system - EMC and environmental test Compliant
