Absolute pressure transducer SM series
ceramicpiezoresistive4-20 mA

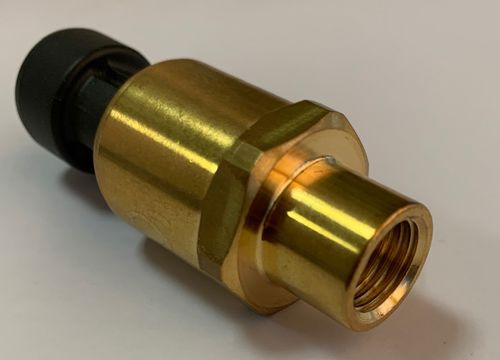

Absolute pressure transducer - SM series - SENSAGGIO SRL - ceramic / piezoresistive / 4-20 mA
Absolute pressure transducer - SM series - SENSAGGIO SRL - ceramic / piezoresistive / 4-20 mA
Add to favorites
Compare this product

Characteristics

Pressure type
absolute
Technology
ceramic, piezoresistive
Output
4-20 mA
Mounting
threaded
Fluid
for gas, for liquids
Material
stainless steel, brass
Protection level
IP67, corrosion-resistant
Applications
for marine applications, for refrigeration circuits, for boiler, for HVAC systems, for water treatment, for the aeronautical industry, for OEM, for medical applications, for the food industry
Other characteristics
compact, OEM, high-sensitivity, fast response time, smart
Pressure range

Max.: 70 bar
(1,015.26 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

SENSAGGIO IS GLAD TO INTRODUCE THE 4...20mA SENSOR, SPECIFIC FOR INDUSTRIAL / HYDRAULIC/ AUTOMOTIVE APPLICATIONS. THE SENSOR IS A CURRENT OUTPUT 4…20mA PRESSURE DEVICE BASED ON A PIEZORESISTIVE CERAMIC TECHNOLOGY.  PERFORMANCES : Resistant to extreme temperatures, excellent hysteresis, high accuracy, fast response time and excellent surge resistance  COMPATIBILITY: Suitable for most media, HVACR refrigerant gases, also for new gas HFO 1234ze and related oils  RESISTANCE: Suitable for critical application with aggressive fluids  FLEXIBILITY: Customizable with different materials, connectors and transfer function  COMPLIANCE: Compliant with Rohs and Reach Regulation More info: [email protected]
