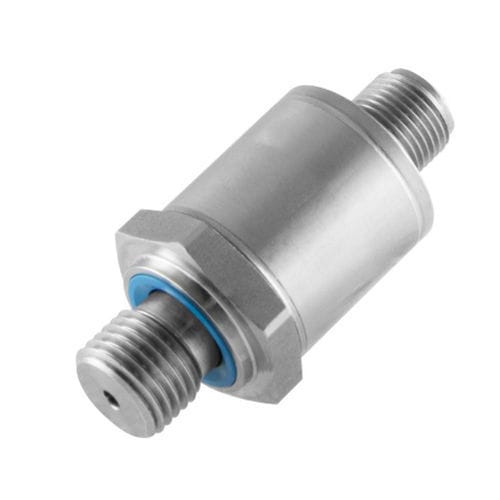

Digital pressure sensor PTE7300 series M12 connector5VDC3VDC
Add to favorites
Compare this product
Characteristics
- Output
- digital
- Electrical connection
- M12 connector
- Supply voltage
- 5VDC, 3VDC
- Mounting
- threaded
- Process connection
- G 1/4, NPT 1/4
- Material
- stainless steel
- Protection level
- EMC, IP69K
- Applications
- process, for OEM, for medical applications, for refrigeration circuits, for hydraulic applications
- Other characteristics
- precision, fast response time
- Pressure range
Min.: 0 bar
(0 psi)Max.: 600 bar
(8,702.26 psi)- Precision
0.25 %, 1.5 %
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
The PTE7300 pressure sensor is the sensing platform from Sensata Technologies offering best-in-class accuracy with excellent mechanical shock resistance and EMC protection to meet the most demanding applications in mid to high-pressure ranges.
Available with a wide range of ports, low power consumption, fast response time, and increased sensor diagnostics capabilities, enable customers to standardize and simplify designs.
