Tension/compression load cell S-1
S-beamstrain gauge2 mV/V

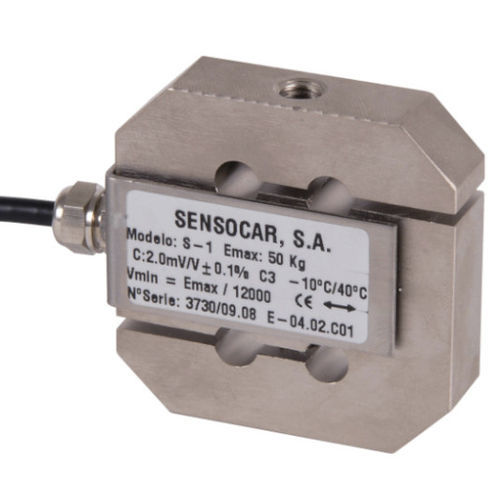

Tension/compression load cell - S-1 - SENSOCAR - S-beam / strain gauge / 2 mV/V
Tension/compression load cell - S-1 - SENSOCAR - S-beam / strain gauge / 2 mV/V
Add to favorites
Compare this product
Go to the SENSOCAR website for more information

Characteristics

Type
tension/compression
Form
S-beam
Technology
strain gauge
Output signal
2 mV/V
Applications
weighing, for hopper, for cranes, for mixers, for testing machine
Other characteristics
OIML, stainless steel, high-resolution, IP67
Rated load

30 kg, 50 kg, 75 kg, 100 kg, 150 kg
(66.14 lb, 110.23 lb, 165.35 lb, 220.46 lb, 330.69 lb)

Length

60 mm
(2.362 in)

Height

60 mm
(2.36 in)

Description

High resolution (C5-C6) Mixers / Hoppers / Silos Lever System platforms Crane scales Testing machinery (Tension/Compression) Divisions Up to 6000 divisions OIML-R60 Material Fully stainless steel IP Rating IP-67 Accuracy Class C3-C4-C5-C6 Output ratio error (RO%) ± 0,1% Vmin Emax/12000 Excitation voltage 5...15V Input resistance 350 ± 5Ω Output resistance 350 ± 3Ω Zero balance ± 1% Compensated temperature range -10...+40℃ Operating temperature range -35...+70℃ Storage temperature range -40...+80℃ Safe load limit 150% Emax Insulation resistance >5000M Ω Cable length 5m
