Tension/compression load cell TR-2
S-beamstrain gauge2 mV/V

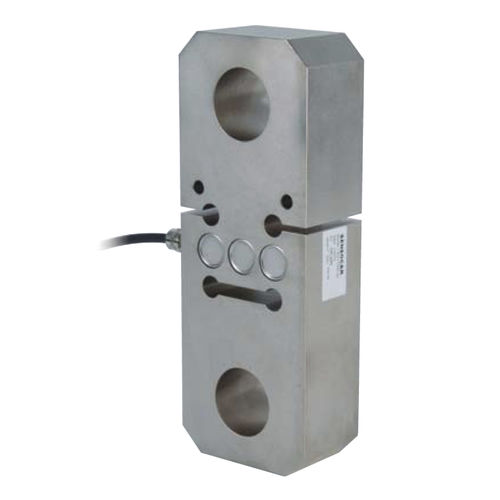

Tension/compression load cell - TR-2 - SENSOCAR - S-beam / strain gauge / 2 mV/V
Tension/compression load cell - TR-2 - SENSOCAR - S-beam / strain gauge / 2 mV/V
Add to favorites
Compare this product
Go to the SENSOCAR website for more information

Characteristics

Type
tension/compression
Form
S-beam
Technology
strain gauge
Output signal
2 mV/V
Applications
for cranes
Other characteristics
OIML, stainless steel, IP67
Rated load

17 t, 25 t, 50 t, 75 t, 100 t
(18.74 us ton, 27.56 us ton, 55.12 us ton, 82.67 us ton, 110.23 us ton)

Length

100 mm, 110 mm, 140 mm, 180 mm
(3.937 in, 4.331 in, 5.512 in, 7.087 in)

Height

220 mm, 260 mm, 330 mm, 400 mm
(8.66 in, 10.24 in, 12.99 in, 15.75 in)

Description

Divisions Up to 3000 divisions OIML-R60 Material Fully stainless steel IP Rating IP-67 Accuracy Class C3 Output ratio error (RO%) ± 0,1% Vmin Emax/10000 Excitation voltage 5...15V Input resistance 700 ± 5Ω Output resistance 700 ± 3Ω Zero balance ± 1% Compensated temperature range -10...+40℃ Operating temperature range -35...+70℃ Storage temperature range -40...+80℃ Safe load limit 150% Emax Insulation resistance >5000M Ω Cable length 15m Applications Crane scales

Catalogs

TR-2
TR-2
1 Pages
Catalogue
Catalogue
95 Pages
