Double-ended shear beam load cell DCO-2
beam type2 mV/Vweighing

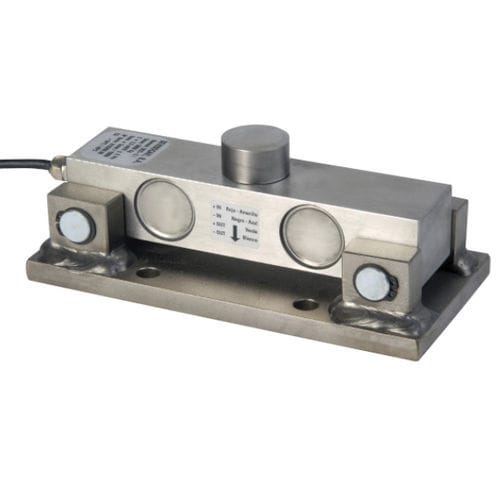

Double-ended shear beam load cell - DCO-2 - SENSOCAR - beam type / 2 mV/V / weighing
Double-ended shear beam load cell - DCO-2 - SENSOCAR - beam type / 2 mV/V / weighing
Add to favorites
Compare this product
Go to the SENSOCAR website for more information

Characteristics

Type
double-ended shear beam
Form
beam type
Output signal
2 mV/V
Applications
weighing, for hopper, for silo, for mixers
Other characteristics
OIML, stainless steel, IP67, IP68, explosion-proof
Rated load

3,000 kg, 4,000 kg, 5,000 kg, 7,500 kg, 10,000 kg
(6,613.87 lb, 8,818.49 lb, 11,023.11 lb, 16,534.67 lb, 22,046.23 lb)

Length

185 mm
(7.283 in)

Height

90 mm
(3.54 in)

Description

Mixers / Hoppers / Silos Axle weighing platforms ATEX areas 4 load cells platform Divisions Up to 5000 divisions OIML-R60 Material Fully stainless steel IP Rating IP-67 / IP-68 Accuracy Class C3-C4-C5 Output ratio error (RO%) ± 0,1% Vmin Emax/15000 Excitation voltage 5...15V Input resistance 700 ± 5Ω Output resistance 700 ± 3Ω Zero balance ± 1% Compensated temperature range -10...+40℃ Operating temperature range -35...+70℃ Storage temperature range -40...+80℃ Safe load limit 150% Emax Insulation resistance >5000M Ω Cable length 5m
