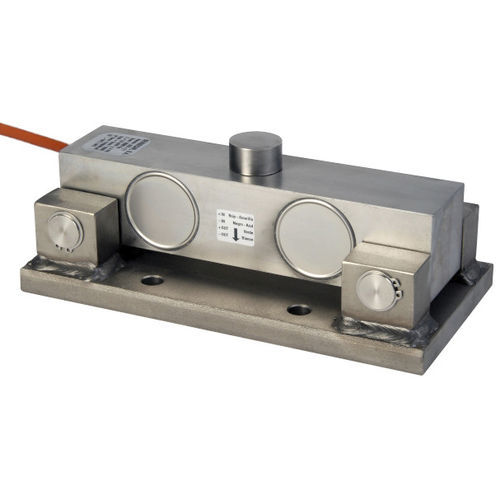

Double-ended shear beam load cell DCO-3DPbeam typedigitalfor hopper
Add to favorites
Compare this product
Characteristics
- Type
- double-ended shear beam
- Form
- beam type
- Output signal
- digital
- Applications
- for hopper, for silos, for mixers, for truck scale
- Other characteristics
- OIML, stainless steel, IP68
- Rated load
Min.: 5 t
(5.51 us ton)Max.: 25 t
(27.56 us ton)
Description
Applications
4 load cells platform
Divisions Up to 4000 divisions OIML-R60
Material Fully stainless steel
IP Rating IP-67
Accuracy Class C3-C4
Power consumption 35mA
Transmission speed 100kHz
Conversions per second 40s⁻¹
Internal resolution 24bits
Zero balance ± 1Ω
Compensated temperature range -10...+40℃
Operating temperature range -35...+70℃
Storage temperature range -40...+80℃
Safe load limit 150% Emax
Ultimate load limit 300% Emax
Insulation resistance >5000M Ω
Cable length 16,65m
