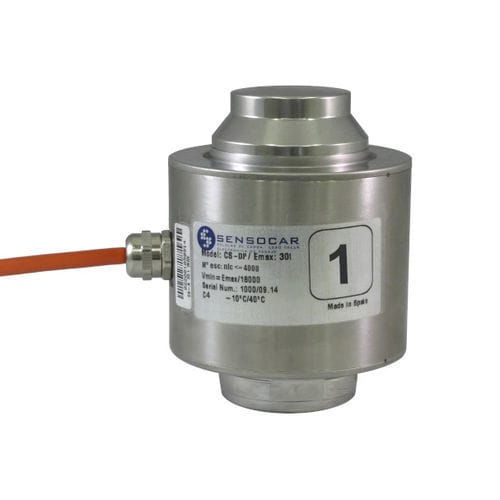

Compression load cell CS-DP
canisterdigitalfor hopper

compression load cell
compression load cell
Add to favorites
Compare this product

Go to the SENSOCAR website for more information

Characteristics

Type
compression
Form
canister
Output signal
digital
Applications
for hopper, for silos, for mixers, for truck scale
Other characteristics
OIML, stainless steel, high-resolution, IP69
Rated load

Max.: 50 t
(55.12 us ton)

Min.: 10 t
(11.02 us ton)

Description

Applications High resolution (C5-C6) 4 load cells platform Divisions Up to 6000 divisions OIML-R60 Material Fully stainless steel IP Rating IP-69K Accuracy Class C3-C4-C5-C6 Power consumption 35mA Transmission speed 100kHz Conversions per second 40s⁻¹ Internal resolution 24bits Zero balance ± 1Ω Compensated temperature range -10...+40℃ Operating temperature range -35...+70℃ Storage temperature range -40...+80℃ Safe load limit 150% Emax Ultimate load limit 300% Emax Insulation resistance >5000M Ω Cable length 16,65m

Catalogs

CS-DP
CS-DP
2 Pages
