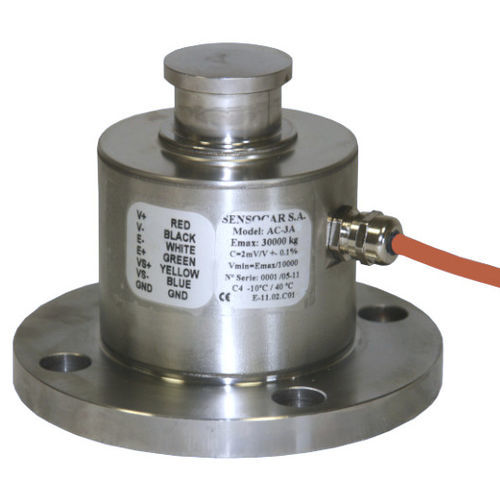

Compression load cell AC-3DPS-beamdigitalfor hopper
Add to favorites
Compare this product
Characteristics
- Type
- compression
- Form
- S-beam
- Output signal
- digital
- Applications
- for hopper, for silo, for mixers
- Other characteristics
- stainless steel, IP68
- Rated load
Max.: 200 t
(220.46 us ton)Min.: 15 t
(16.53 us ton)- Height
113.4 mm, 148 mm
(4.46 in, 5.83 in)
Description
Mixers / Hoppers / Silos
High IP level (IP68-IP69K)
Divisions
Up to 4000 divisions OIML-R60
Material
Fully stainless steel
IP Rating
IP-68
Accuracy Class
C3-C4
Power consumption
35mA
Transmission speed
100kHz
Conversions per second
40s⁻¹
Internal resolution
24bits
Zero balance
± 1%
Compensated temperature range
-10...+40℃
Operating temperature range
-35...+70℃
Storage temperatre range
-40...+80℃
Safe load limit
150% Emax
Ultimate load limit
300% Emax
Insulation resistance
>5000M Ω
Cable length
16,65m
