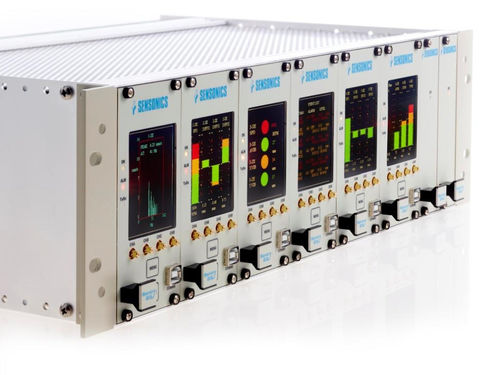

Condition monitoring data acquisition system Sentry G3

32-channelrack-mountindustrial

⦿ Orbit (Full or Ordered) ⦿ Bode ⦿ Polar ⦿ Bar Graph / Histogram ⦿ Time Waveform ⦿ FFT (Full, Horizontal and Vertical views) ⦿ Waterfall and Campbell Diagrams ⦿ Trend ⦿ Nyquist ⦿ Multiple Plot Overlays The SentryCMS condition monitoring system is a scalable addition to the Sentry G3 API670 compliant machine protection system. Providing flexible data acquisition combined with powerful analysis tools for both online and offline performance monitoring. The Sentry VAM DAQ module locates in slot 6 and provides data acquisition for up to 32 sensor & 8 phase reference channels. Simultaneously acquiring and storing asynchronous sampled and order locked processed data means no event remains undetected. With the SentryCMS software offering detailed post analysis features in combination with standard order locked displays. The separate SentryG3 VAM hardware concept ensures the protection element of the machine monitoring system is separate and diverse from the analysis acquisition and associated software tools.
