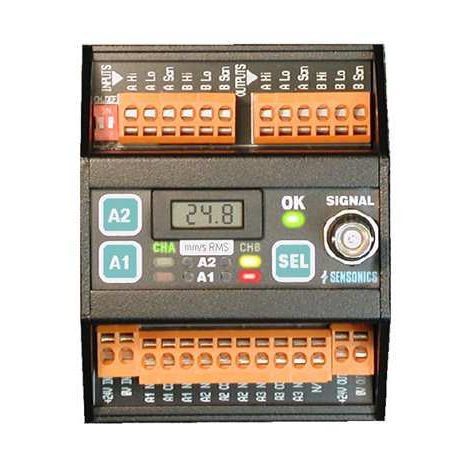

Vibration monitoring device DN2601

for bearingsDIN rail2-channel

This low cost high performance signal conditioning unit is ideally suited to providing protection of many types of rotating machinery from breakdown, including turbines, motors, pumps, fans, etc. Its small size and din rail mounting format allow it to be mounted in equipment panels with other equipment or locally to the monitored machine in a junction box. Unit will fit both 35mm and G type DIN rails. The DN2601’s alarms can be used to automatically trip plant and it’s analogue outputs are suitable to input to DCS or other control/monitoring systems Input: 2 x 2 wire accelerometers, 100mV/g sensitivity as standard. (Option for velocity transducer input available.
