Water Quality Monitoring Systems
cost-efficient measurement of process parameters
display for measuring values and clear calibration instructions
simultaneous temperature measurement
2 free scaleable analogue outputs and 1 relay output
USB interface and PC software
modular DIN rail mounted case
networking with display unit for 8 measuring values
firmware update via USB

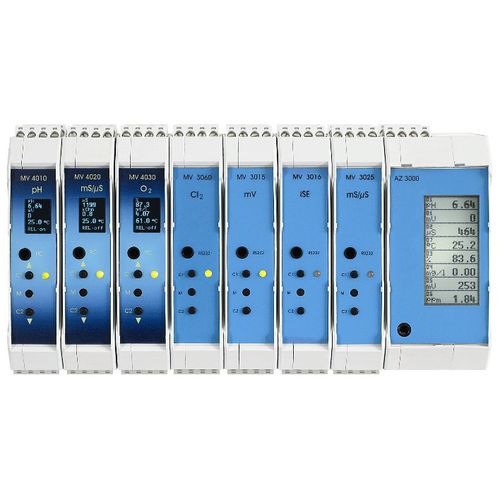

The transmitter series MV 3000 and MV 4000 are excellently suited for continuous measurements of one or more parameters in connection with process control units, data loggers, -printers or visualisation systems. They are characterised by high flexibility and simple handling. Calibrations can be done directly on transmitter. An additional display on MV 4000 simplifies measuring value checks, calibrations and makes each transmitter to a stand-alone measuring instrument.
All transmitters can be connected with the display unit AZ 3000. In this way the customer gets a complete multiparameter measuring system with data logger and fieldbus interface RS-485.
Simple software features configuring with logging of configuration parameters, calibration as well as displaying and recording of measuring values directly on PC using USB interface. Additionally the series MV 4000 allows actualisation of firmware via flash update.
