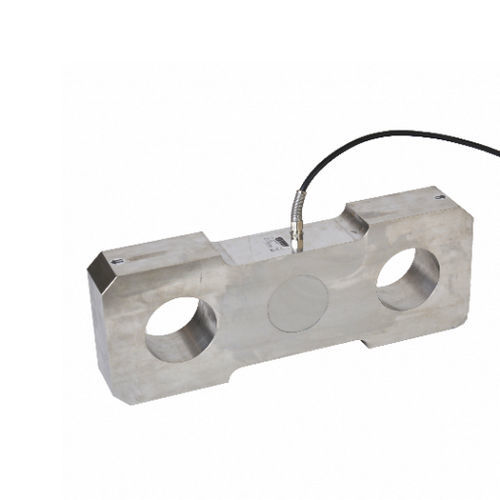

Tension load cell 520 seriesbeam typestrain gaugedigital
Add to favorites
Compare this product
Characteristics
- Type
- tension
- Form
- beam type
- Technology
- strain gauge
- Output signal
- digital
- Applications
- weighing
- Other characteristics
- stainless steel, nickel-plated, with overload protection, temperature-compensated, with amplified output, wireless, IP67, IP66, explosion-proof
- Rated force
Min.: 75 kN
Max.: 5,000 kN
- Rated load
Min.: 7.5 t
(8.27 us ton)Max.: 500 t
(551.16 us ton)- Length
Min.: 179 mm
(7.047 in)Max.: 994 mm
(39.134 in)- Height
Min.: 60 mm
(2.36 in)Max.: 310 mm
(12.2 in)
Description
TENSION LINK LOAD CELLS
Reference : 5200-5205
Tension link load cells specially adapted for standard shackles.
- Sturdy design
- Protection class: IP66
- Cable length: see drawing table - CL (other lengths available on request)
- Material: stainless steel (5200), nickel-plated steel (5205)
Application(s) SENSY’s load cells 5200-5205 are perfectly designed for the following applications:
- Tension force measurement,
- Suspended industrial weighing,
- Winch monitoring.
