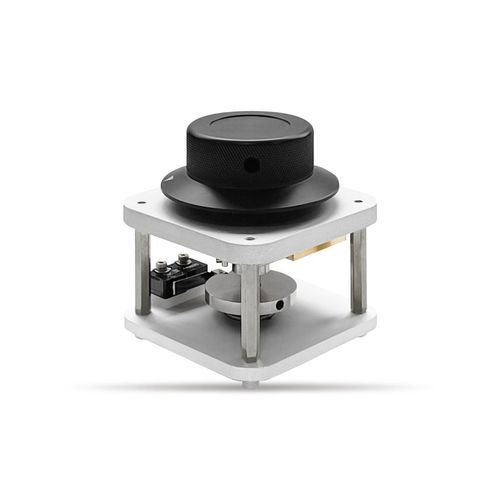

Operating electronic handwheel HW62H

controlcustom-made

Product name
HW62H Handwheel controller (panel-mounted)

Overview

• Compact handwheel controller for panel mounting
• Optional detent(s) at middle and/or end positions
• Selectable operating angles: ±50°, ±135°, ±160°
• Optional switch signal (microswitch) or contactless potentiometer output

Dimension
Dimension drawing available for HW62H (see product page for reference image).

General Mechanical Specifications

• Operating angle: ±50°, ±135°, ±160°
• Operating force: Approx. 5 N to 15 N
• Stopper strength: 120 N
• Mechanical life expectancy (potentiometer type): 10,000,000 cycles
• Mass: Approx. 350 g
• Operating temperature range: -30℃ to +85℃
• Protection degree: IP65 (front/panel side)

General Electrical Specifications

• Standard model: HW62H-0505-270-2 (other input/output configurations available)
• Contactless potentiometer model: WLH22E
• Applied voltage (0505): 5 V ±10%
• Output signal (0505): 0–100% Vcc
• Load resistance: >100 kΩ
• No-load current consumption: <16 mA
• Output deviation at ends: <1% Vcc
• Electrical angle: 270°

General Electrical Specifications (Microswitch)

• Rating: 125 V A.C. / 5 A
• Electrical life expectancy (microswitch): 200,000 cycles
• Mechanical life expectancy (microswitch): 30,000,000 cycles
• Insulation resistance: >100 MΩ (500 V D.C.)
• Dielectric strength: 1 min at 1000 V A.C.

Input voltage / output signal (options)

• 0505: 5 V ±10% / 0–100% Vcc
• 2410: 15–30 V / 0–10 V
• 2405: 9–30 V / 0–5 V
• 2442: 15–30 V / 4–20 mA

Special specifications available

• Detents: 0–3 detents available on request (e.g., center detent, end detent)
• Custom dial: special dials available on request
• Dial marking: laser marking available; marking location can be specified
• Special mechanical structure: middle-position self-locking option available

Technical specifications

• Model: HW62H
• Product type: Handwheel controller (panel-mounted)
• Operating angle options: ±50°, ±135°, ±160°
• Electrical angle: 270°
• Typical applied voltage (0505): 5 V ±10%
• Typical output (0505): 0–100% Vcc
• Other I/O options: 0–10 V, 0–5 V, 4–20 mA
• Load resistance: >100 kΩ
• No-load current: <16 mA
• Output deviation (ends): <1% Vcc
• Operating force: approx. 5–15 N
• Stopper strength: 120 N
• Mechanical life (potentiometer): 10,000,000 cycles
• Microswitch electrical life: 200,000 cycles; mechanical life: 30,000,000 cycles
• Protection: IP65 (front side)
• Operating temperature: -30℃ to +85℃
• Mass: approx. 350 g
