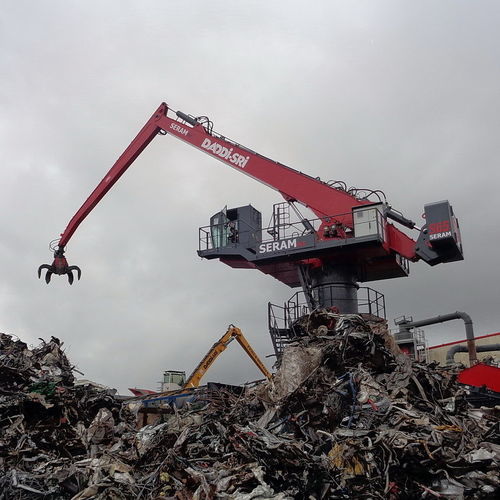

Handling waste and scrap metal crane SERAM ES3 seriesfixedboomall-terrain
Add to favorites
Compare this product
Characteristics
- Configuration
- fixed
- Structure
- boom
- Operating environment
- all-terrain
- Applications
- lifting, for handling waste and scrap metal
- Engine type
- electric
- Other characteristics
- hydraulic, balanced
- Max load at max radius
3 t
(3 us ton)- Working height
26 m
(85'03" )- Horizontal reach
20 m, 22 m
(65'07" , 72'02" )- Crane engine power
90 kW
(122.4 hp)- Width (base)
4 m
(13'01" )- Length (base)
4 m
(13'01" )- Total weight
72 t, 74 t
(79 us ton, 82 us ton)
Description
The Hydraulic Balance System
The SERAM cranes are cranes with balanced boom. Indeed, the counterweight is mobile. It is moving according to the reach of the crane, so that the weight of the boom is compensated in any position. Thus, only the load at the end of the boom has to be lifted.
The synchronisation of the counterweight according to the boom is made through a fully vhydraulic connection. This technology is patented worldwide.
OPERATING CABIN
- New raised and advanced operating cabin, in order to optimize the overview in the different feeding areas (shears, shredders, vessels, etc...).
- Large glazed area, athermic and safety type.
- Comfortable standard equipment: manipulators with control console, reversible air conditioning, control and monitoring screen, adjustable driver seat, MP3 player, etc...
MACHINE ROOM
The machine room now includes the entire motor pump group, but also the coolers and the electrical cabinet. A set designed for easy and accessible maintenance.
This machine room can be thermally insulated and equipped with a heating system, for use in the cold countries.
