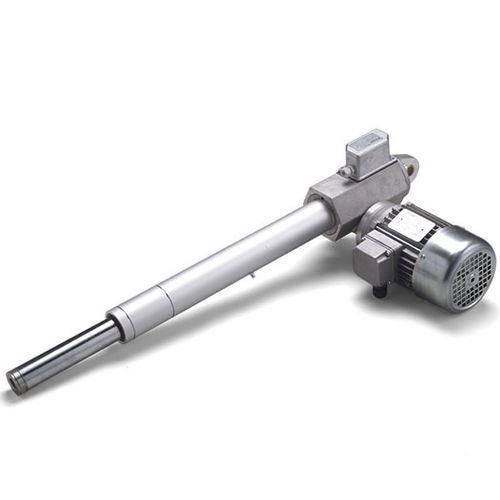

Electric actuator CLB Series

linearball screwworm gear

Rear hinged attachments. High precision worm gearbox, ZI involute profile. Lubrication with synthetic grease (gearbox long life lubricated, screw drive regreasable). CLB Series ball screw drive linear actuators: 3 standard sizes available Ball screw from Ø 20 mm to Ø 32 mm Linear speed from 2,5 mm/s to 60 mm/s Load capacity from 10 kN to 25 kN Standard stroke length up to 800 mm, special stroke length also available upon request Performances with Duty Cycle Fi = 1000 % over 10 min at ambient temperature 25 °C Available accessories (*): Adjustable cam-operated electric switches Rotary potentiometer Prepared for IEC standard motors, AC or DC motors Anti-turn device Safety clutch Safety nut Protective bellows More option upon request (*): Push rod in stainless steel AISI 304 Outer tube in stainless steel AISI 304 Lubricants for high or low ambient temperature Lubricants suitable for food industry VITON or silicone special seals Wiper seal on push rod with second lip in brass (ice scrapers) (*) Always check with our technical support the feasibility of the required option and accessories
