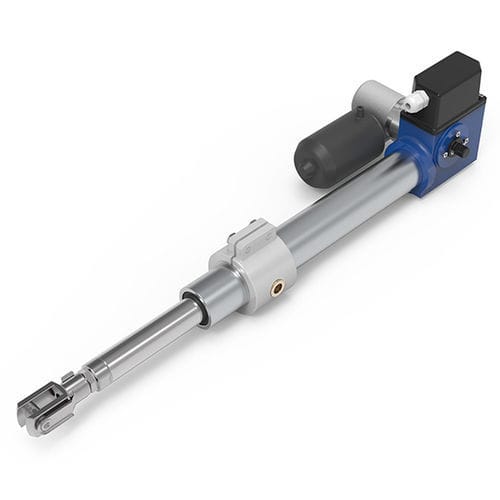

Electric actuator CLB Series

linearball screwworm gear

Linearmech electromechanical linear actuators are easy-to-use and reliable products. Great and convenient alternative to the use of pneumatic cylinders recommended in case of medium to low speed application, intermittent duty cycle operation and self-locking requirement when load is applied, both pull or push load. LINEARMECH CLA and CLB Series linear actuators are right angle design, AC or DC motor always included. Aluminum alloy housing with high resistance. Input drive with worm gear. CLB Series ball screw drive linear actuators: 2 standard sizes available Ball screw Ø 14 Linear speed up to 125 mm/s Load capacity push-pull up to 7.000 N Electric motors available: AC 3-phase or 1-phase motor, DC motors (12V, 24V) Long life lubricated, maintenance free Available accessories (*): Electric limit switches, cam operated, protected under a sealed cover (IP65), Stainless steel push rod Rear bracket Safety clutch Brake-motor (*) Always check with our technical support the feasibility of the required option and accessories
