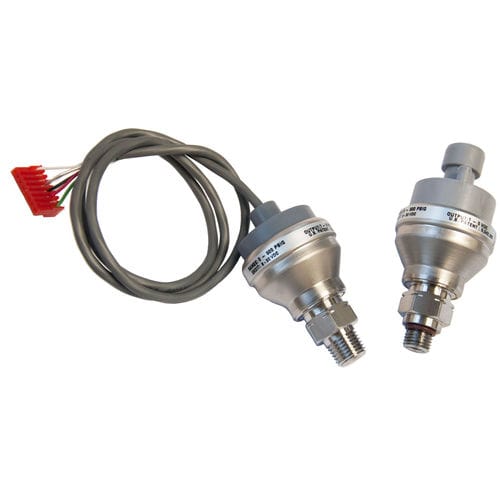

Absolute pressure transducer 209H

analogDCfor CNG

The Model 209H pressure transducer is designed for customers who require high performance, reliability and versatility in harsh applications. The Model 209H features all 316L stainless steel wetted materials, ideal for the demanding requirements of the alternative energy market. The sensor offers many pressure and electrical connections to satisfy challenging installation requirements. The 209H features a patented overpressure stop to protect the sensor against unexpected spikes or in high pulsation applications. 316 SS Design - The sensor and all wetted materials are manufactured using a 316L stainless steel design to protect the sensor in the corrosive applications of the alternative fuels market. The unit comes standard with an accuracy of ±0.25% FS across a wide pressure range offering, providing high performance and low cost. Robust Design & Construction for Reliable Service - The 209H is designed and built to withstand demanding applications. The industrial construction, designed with a positive overpressure stop, enables the sensor to resist overpressure conditions up to 4X the rated ranges. Flexibility for Many Applications - The 209H transducer offers many pressure and electrical fittings, covering multiple installation configurations. This minimizes additional engineering time to accommodate the sensor, allowing for earlier project completion and quicker time to market. Features • Rugged 316L SS construction • Non-oil filled design • High over-pressure option • Operates over a wide temperature band • Compatible with a variety of gases & liquids • Operates on low cost unregulated DC power • Suitable for high shock & vibration applications
