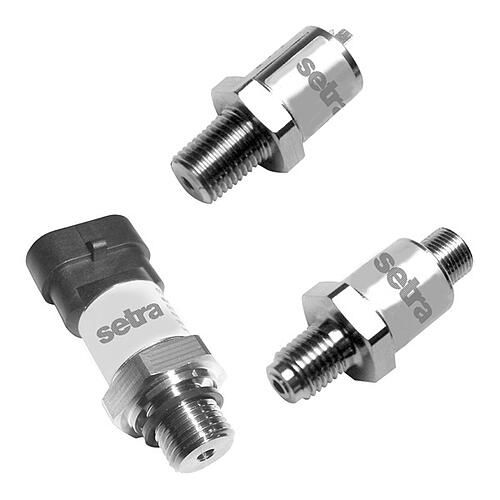

Absolute pressure transducer 32CS

analogfor natural gasstainless steel

The Model 32CS is designed for heavy duty applications in hazardous locations requiring intrinsic safe, top of the line performance, reliability and stability at an affordable price. The Model 32CS offers exceptional ±0.5% FS accuracy in pressure ranges from 75 PSI to 32,000 PSI and features an all welded stainless steel construction for a robust design and IP67 seal for moisture and humidity protection. The Model 32CS offers a variety of different outputs, pressure connectors, and electrical connectors to satisfy the most challenging application requirements. For ATEX/IECEx intrinsically safe pressure transducers, refer to Setra's 31IS and 32IS. Built to Last - The Model 32CS are heavy duty pressure devices with long term stability, product reliability and accuracy built in. The compact welded stainless steel designs are constructed to protect the sensors in the most demanding of industrial environments. The Model 32CS provides a 3x overpressure (0-10k PSI) and a 2.5x overpressure (10k to 14.5k PSI) rating, ensuring that the sensor does not fail during unexpected pressure spikes. The electrical connectors are tested to an environmental protection specification of IP67 and above and a robust internal design ensures that the transducers can survive high levels of vibration. A high level of EMC protection allows the transmitters to perform to the most stringent of industrial standards and all devices are RoHS compliant.
