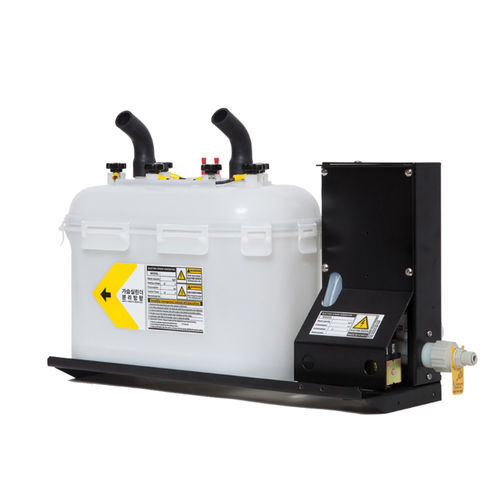

Air humidifier WH008-3CA

steamelectrode

Compact Electrode Humidifier, 3P 220-380V Humidification Capacity 8Kg/h Cylinder CYW008-3, 502X180X300 / 5.3Kg Water supply 1P 220VAC,1/4 inch Copper pipe and purifier hose,2~8Bar Drain 1P 220VAC, OD13[mm] The WH Series is a compact electrode steam humidifier that breaks away from the conventional electrode humidifier design. By adopting an innovative structure, it reduces the overall height by more than 50%, allowing for easy installation in air conditioning and HVAC systems. Additionally, its sealed container design simplifies maintenance. The unit's exterior proportions are similar to those of traditional resistive humidifiers, ensuring a seamless replacement for existing installations. 1. Compact Size - Unlike conventional electrode humidifiers, which are typically designed with a vertical structure, the WH Series adopts a horizontal design. This significantly reduces its height—approximately half that of an 8 kg/h humidifier—minimizing installation space. 2. Rapid Steam Generation - Equipped with six electrodes, the WH Series delivers over twice the initial startup speed compared to conventional models of the same cross-sectional area. It offers exceptional response time, reaching full-rated capacity within 15 minutes (based on tap water usage). 3. Minimized Rust Formation - The electrodes are made from a specially engineered alloy, significantly reducing corrosion-related rust formation and ensuring clean steam output.
