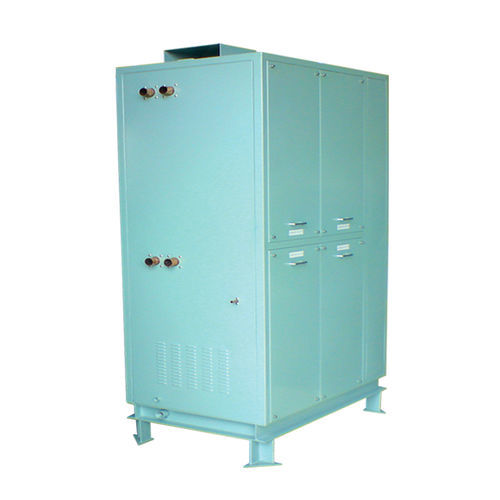

Air humidifier BH series

steamelectrodefixed

Stand-alone humidifier, 3P 380~690V Humidification Capacity 180Kg/h Cylinder CY045-3X4 Cycle, 1300X680X2100 / 165Kg Water supply 1P 220VAC/TR Integrated (380V), 2~8[Bar], 20A Socket Drain 1P 220VAC, 50A Socket Control method On/Off, Proportional (Capacity) control The BH-Series is a standalone humidifier that integrates innovative design and advanced technology to meet diverse customer needs while Up toimizing user convenience. With a European-style design and structure, it is suitable for installation in various indoor environments requiring humidification, including air conditioning systems. This product offers nine different operating modes and supports multi-input as standard, allowing for a wide range of configurations. Through interlinked operation of up to eight units (Master/Slave configuration), it can accommodate capacities ranging from 2 kg/h (small-scale) to 360 kg/h (large-scale humidification). Additionally, it supports NTC-based temperature control functions, making it applicable for personal SPA facilities utilizing generated steam. 1. Convenient Installation - Offers nine standard operating modes to accommodate various customer needs, including remote operation, self-operation, and proportional operation. 2. High Limit Sensor - Prevents excessive humidity inside the duct caused by seasonal changes or high humidification - demand. - Allows an additional humidity sensor to be installed inside the discharge duct for precise humidification capacity control. 3. Proportional Control - When used with Seungil Electronics’ exclusive controller, supports ON/OFF operation and proportional capacity control based on input signals.
