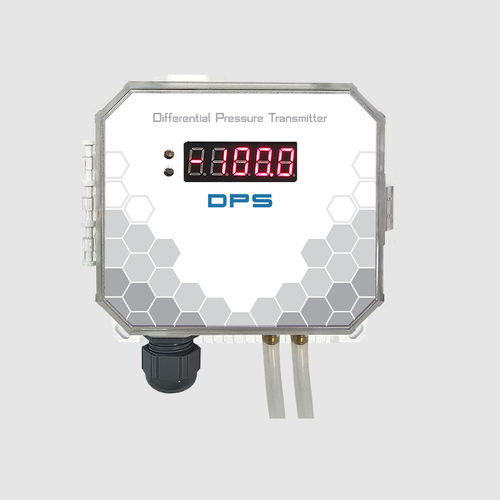

Relative pressure transmitter DPS-M

differentialpiezoresistiveRS-485

Wall-Mounted Precision Differential Pressure Senor 220VAC Power Input RS-485 Comm. Modbus RTU 1ch 3ea Input Switches, 5digit Segment Display User-configurable Alarm Output One Touch Wiring and Basic Water Resistance Case - Equipped with a high-performance 16-bit resolution differential pressure module for enhanced precision. - A low-pass filter algorithm is applied to differential pressure data conversion, minimizing hunting and surging effects. - To ensure stability, an 8-stage conversion smoothing (average application) process is implemented to minimize even the slightest deviation. - The DP sensor module is factory-calibrated, ensuring no module-to-module variation, and does not require periodic zero-point adjustments. - Displays pressure readings in either Pascal (Pa) or millimeter of water (mmAq), selectable by the user. - Supports both standard differential mode and mass flow mode, which incorporates media temperature compensation. - Allows differential pressure alarm position settings with four types of standard alarms and four types of latch alarms, configurable for both main unit display and contact output.
