Relative pressure transmitter SI-CHC-RSdifferentialpiezoresistiveanalog
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative, differential
- Technology
- piezoresistive
- Output
- analog, digital, RS-485, Modbus RTU
- Supply voltage
- 24VDC
- Mounting
- panel-mount
- Applications
- process, for HVAC systems
- Other characteristics
- pre-calibrated
- Pressure range
Max.: 500 Pa
(0.07 psi)Min.: -500 Pa
(-0.07 psi)
Description

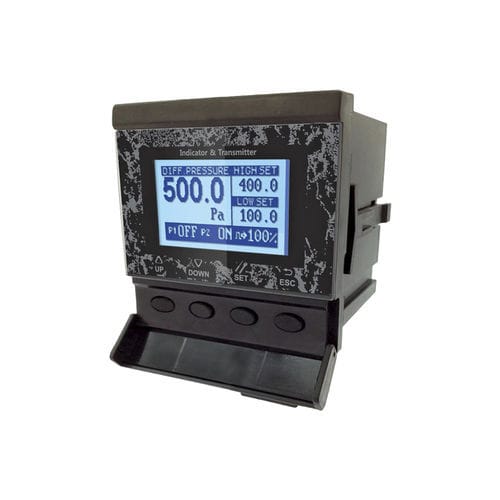

Panel-Mounted Differential Pressure Transmitter
24VDC power input, RS-485 communication with Modbus RTU (1 channel)
Selectable analog output (1 channel), Selectable digital output (2 channels)
128 × 64 monochrome LCD display (Korean/English menu)
4 input switches
User-configurable alarm output
- Adopts a 12-bit resolution differential pressure module.
- The DP sensor module is pre-calibrated at the factory, ensuring no module-to-module deviation and eliminating the need for periodic zero-point adjustment.
- Supports communication output in 8 pressure units.
- Allows differential pressure alarm position settings, enabling control alarms in 8 different modes based on pressure (individually configurable for two channels).
