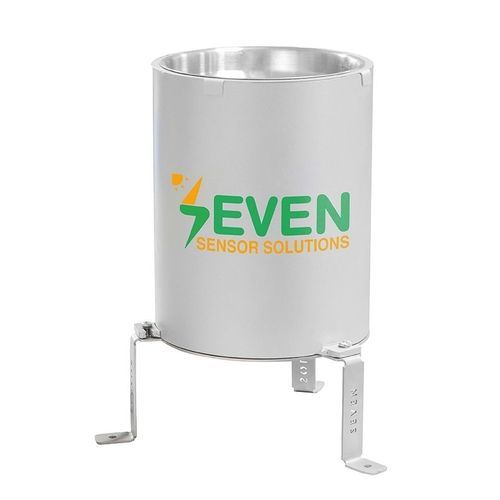

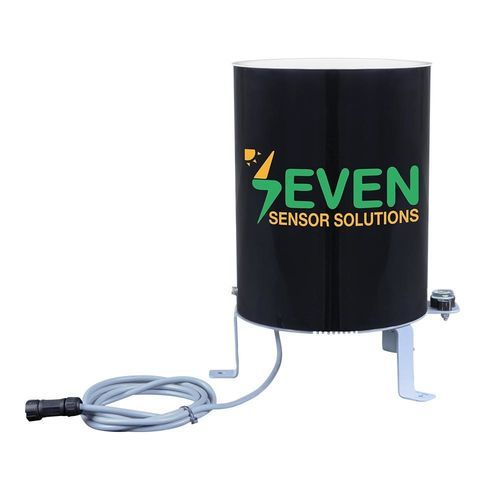

Tipping bucket rain gauge 3S-RG-PLS

200 cm²with pulse output

Product Overview
SEVEN Rain Gauge 3S-RG-PLS accurately measures rainfall using a 200 cm² collection area and a tipping-bucket mechanism with a reed-relay pulse output. The sensor housing is seawater-resistant anodized aluminum for long-term field exposure. Compatible with SEVEN Compact Weather Station and Sensor Box models.

How it works
The tipping-bucket collects precipitation; each tip closes a reed relay and generates a pulse. Pulse frequency and count correspond to rainfall volume and intensity, allowing easy integration with data loggers and telemetry systems.

Applications

• Meteorological monitoring
• Hydrology and runoff studies
• Agricultural irrigation management
• Photovoltaic (PV) site monitoring
• Industrial precipitation monitoring

Key Features

• 200 cm² collection area
• Tipping-bucket mechanism with reed-relay pulse output
• Seawater-resistant anodized aluminum housing
• Includes 3 legs for simple ground mounting (flat surface required)
• 3 m LIYY cable (UV and weather resistant)

Why choose SEVEN Rain Sensors?

• Balanced price/performance for standard industrial and environmental applications
• Seawater-resistant anodized aluminum housing for extended durability in coastal and harsh environments
• Compact design and simple installation with included mounting legs

Frequently Asked Questions (FAQ)

• How do I set up the sensor? Follow the user manual included with the product for step-by-step installation and wiring instructions.
• Does the sensor include a cable? Yes. The sensor includes a 3 m LIYY cable that is UV and weather resistant; custom cable lengths available on request.
• How is the 3S-RG-PLS mounted? Ground mounting using the included three legs; a stable flat surface is required.
• What is the warranty period? The 3S-RG-PLS includes a 2-year warranty covering defects in materials and workmanship.
• What are the delivery times? Small orders (up to 5 pcs): approx. 3–4 weeks. Bulk orders (5–100 pcs): approx. 7–9 weeks.
• What is the price? Price range: 180–320 EUR depending on quantity and options.

Technical Specifications
Item Code: 3S-RG-PLS
Sensor Type: Tipping Bucket Rain Gauge
Measuring Range: 600 mm/h
Accuracy: ±%1 (0 mm/h – 30 mm/h); ±%2 (30 mm/h – 100 mm/h); ±%5 (100 mm/h – 600 mm/h)
Resolution: 0.2 mm
Collection Area: 200 cm²
Data Output: Reed Relay (pulse output)
Electrical Connection: 3 m LIYY cable, UV and weather resistant
Operating Temperature Range: 0°C to +85°C
Dimensions: Ø 160 x 257 mm
Connection Box Dimensions: 70.2 x 82 x 55 mm (W x L x H)
Weight: 1,2 kg
IP Rating: IP 65
Housing Material: Plexiglass
Connection Box Material: ABS

Caractéristiques / Spécifications techniques

• Item Code: 3S-RG-PLS
• Sensor Type: Tipping Bucket Rain Gauge
• Measuring Range: 600 mm/h
• Accuracy: ±%1 (0–30 mm/h), ±%2 (30–100 mm/h), ±%5 (100–600 mm/h)
• Resolution: 0.2 mm
• Collection Area: 200 cm²
• Data Output: Reed Relay (pulse)
• Electrical Connection: 3 m LIYY cable (UV and weather resistant)
• Operating Temperature Range: 0°C to +85°C
• Dimensions: Ø 160 x 257 mm
• Connection Box Dimensions: 70.2 x 82 x 55 mm (W x L x H)
• Weight: 1,2 kg
• IP Rating: IP 65
• Housing Material: Plexiglass
• Connection Box Material: ABS
