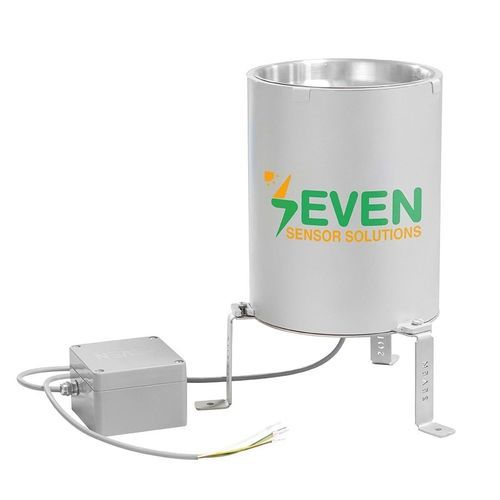

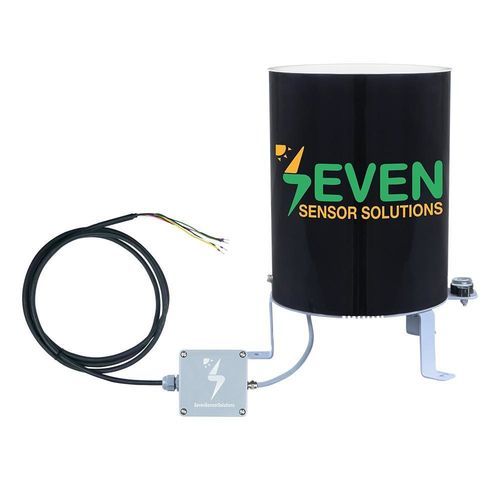

Tipping bucket rain gauge 3S-RG-MB

200 cm²Modbus RTU

Product overview
SEVEN 3S-RG-MB tipping-bucket rain gauge accurately measures rainfall over a 200 cm² collection area using a tipping-bucket mechanism and a reed relay. Pulse data are available via RS485 using the Modbus RTU protocol. The sensor combines corrosion-resistant anodized aluminum components and Plexiglass parts for durable outdoor operation and includes a 3 m UV- and weather-resistant LIYY cable.

How it works
The device counts tipping events from the bucket assembly (resolution 0.2 mm) via a reed relay to calculate cumulative precipitation and rainfall intensity categories (light, moderate, heavy) across the 200 cm² collection area.

Applications
Suitable for meteorology, hydrology, agriculture, photovoltaic (PV) site monitoring and industrial precipitation measurement and control.

Key advantages

• Cost-effective solution for industrial and environmental monitoring, including PV plants.
• Corrosion-resistant materials and IP65 protection for reliable outdoor use in coastal and harsh environments.
• Simple ground installation with supplied three-leg base; requires a level surface and no additional mounting accessories.

FAQ

• How do I set up the sensor? Follow the user manual for step-by-step installation and wiring instructions.
• Does the sensor include a cable? Yes, it includes a 3 m LIYY cable that is UV and weather resistant.
• How is the 3S-RG-MB mounted? Ground mounting using the supplied three-leg base; a level surface is required.
• What is the warranty period? The 3S-RG-MB is supplied with a 2-year warranty against manufacturing defects.
• What are the delivery times? Small orders (up to 5 pcs): approximately 3–4 weeks. Bulk orders (5–100 pcs): approximately 7–9 weeks.
• What is the price range? Indicative price range for the rain gauge with Modbus RTU output: 235–420 EUR.

Technical specifications

• Item Code: 3S-RG-MB
• Sensor Type: Tipping Bucket Rain Gauge
• Measuring Range: 600 mm/h
• Accuracy: ±1% (0–30 mm/h); ±2% (30–100 mm/h); ±5% (100–600 mm/h)
• Resolution: 0.2 mm
• Collection Area: 200 cm²
• Data Output: RS485 up to 38400 Baud
• Communication Protocol: Modbus RTU
• Power Supply: 12 to 30 V DC
• Power Consumption: 35 mA @ 24 V DC
• Electrical Connection: 3 m LIYY cable, UV and weather resistant
• Operating Temperature Range: 0°C to +85°C
• Dimensions: Ø 160 x 257 mm
• Connection Box Dimensions: 70.2 x 82 x 55 (W x L x H)
• Weight: 1.4 kg
• IP Rating: IP65
• Housing Material: Plexiglass
• Connection Box Material: ABS
