Snow sensor 3S-SS-MB
Add to favorites
Compare this product
Description
Product Overview
SEVEN Snow Sensor is designed to measure the loss in energy production caused by snowfall on photovoltaic modules. Suitable for both ground-mounted and rooftop PV projects, the sensor notifies operators of production losses due to snow accumulation. A snow ratio reading of 10% corresponds to an estimated 10% energy loss for the facility.
How it works

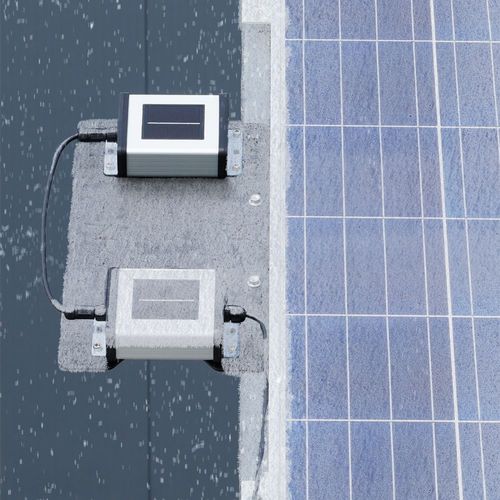

Snow Ratio = Energy Loss. The SEVEN Snow Sensor calculates the snow ratio for the PV plant by comparing irradiance data from two reference cells: one affected by snow and one snow-free. This comparison yields a direct indicator of production loss caused by snow coverage.
Tracker integration
The SEVEN Snow Sensor provides a dedicated solution for PV installations with solar tracker systems. By analyzing irradiance from the snow-covered and snow-free reference cells, the sensor computes the snow ratio and communicates this value to the tracker control center to adjust module positions according to snow accumulation, avoiding unnecessary tracker movements.
TECHNICAL SPECIFICATIONS
Item Code: 3S-SS-MB
Measured Data: Snow Ratio
Resolution: 0.1%
Measurement Range: 0% – 100%
Uncertainty: ≤2%
Irradiance Range: 0…1600 W/m²
Data Output: RS485 up to 38400 Baud
Communication Protocol: Modbus RTU
Output Rate: 1/s
Operating Temperature Range: -40°C to +85°C
Operating Humidity Range: 0 to 100 %RH
Power Supply: 22 to 30 V DC
Power Consumption: 0.82 A max @ 24VDC (while heating off 0.02 A max @ 24 VDC)
Electrical Connection: 3 m LIYYC11Y PUR cable, UV and weather resistant
Galvanic Isolation: 1000 V between power supply and RS485 bus
IP Rating: IP65
Dimensions: 200 mm x 412 mm x 44 mm (W x L x H)
Weight: 1845 g
Calibration: Each sensor is calibrated and normalized under Class AAA Sun Simulator per IEC 60904-2 using a reference cell calibrated by ISFH-Germany.
Characteristics / Technical specifications
SEVEN Snow Sensor is designed to measure the loss in energy production caused by snowfall on photovoltaic modules. Suitable for both ground-mounted and rooftop PV projects, the sensor notifies operators of production losses due to snow accumulation. A snow ratio reading of 10% corresponds to an estimated 10% energy loss for the facility.
How it works
Snow Ratio = Energy Loss. The SEVEN Snow Sensor calculates the snow ratio for the PV plant by comparing irradiance data from two reference cells: one affected by snow and one snow-free. This comparison yields a direct indicator of production loss caused by snow coverage.
Tracker integration
The SEVEN Snow Sensor provides a dedicated solution for PV installations with solar tracker systems. By analyzing irradiance from the snow-covered and snow-free reference cells, the sensor computes the snow ratio and communicates this value to the tracker control center to adjust module positions according to snow accumulation, avoiding unnecessary tracker movements.
TECHNICAL SPECIFICATIONS
Item Code: 3S-SS-MB
Measured Data: Snow Ratio
Resolution: 0.1%
Measurement Range: 0% – 100%
Uncertainty: ≤2%
Irradiance Range: 0…1600 W/m²
Data Output: RS485 up to 38400 Baud
Communication Protocol: Modbus RTU
Output Rate: 1/s
Operating Temperature Range: -40°C to +85°C
Operating Humidity Range: 0 to 100 %RH
Power Supply: 22 to 30 V DC
Power Consumption: 0.82 A max @ 24VDC (while heating off 0.02 A max @ 24 VDC)
Electrical Connection: 3 m LIYYC11Y PUR cable, UV and weather resistant
Galvanic Isolation: 1000 V between power supply and RS485 bus
IP Rating: IP65
Dimensions: 200 mm x 412 mm x 44 mm (W x L x H)
Weight: 1845 g
Calibration: Each sensor is calibrated and normalized under Class AAA Sun Simulator per IEC 60904-2 using a reference cell calibrated by ISFH-Germany.
Characteristics / Technical specifications
- Item Code: 3S-SS-MB
- Measured Data: Snow Ratio
- Resolution: 0.1%
- Measurement Range: 0% – 100%
- Uncertainty: ≤2%
- Irradiance Range: 0…1600 W/m²
- Data Output: RS485 up to 38400 Baud
- Communication Protocol: Modbus RTU
- Output Rate: 1/s
- Operating Temperature Range: -40°C to +85°C
- Operating Humidity Range: 0 to 100 %RH
- Power Supply: 22 to 30 V DC
- Power Consumption: 0.82 A max @ 24VDC (while heating off 0.02 A max @ 24 VDC)
- Electrical Connection: 3 m LIYYC11Y PUR cable, UV and weather resistant
- Galvanic Isolation: 1000 V between power supply and RS485 bus
- IP Rating: IP65
- Dimensions: 200 mm x 412 mm x 44 mm (W x L x H)
- Weight: 1845 g
- Calibration: Calibrated and normalized under Class AAA Sun Simulator per IEC 60904-2 using ISFH-Germany reference cell
