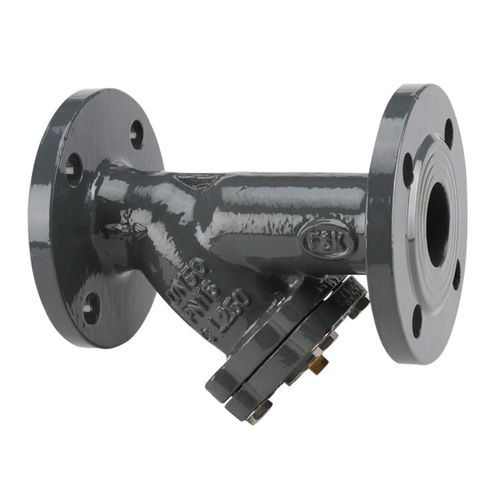

Strainer filter 220 series

waterwith cartridgestainless steel

The 220 Series, manufactured by Lauridsen, is a cast iron stainless steel cartridge flanged that is suitable for. It has a body made up of cast iron EN GJL-250, and is integrated with a bonnet including a draining cap threaded BSP, 150pm thickness and descendant fluid having either a horizontal or vertical position. The flanged features temperatures that ranges from -10°c up to +120°c and pressure that ranges from 10 up to 16 bars with a nominal diameter of 200. Moreover, this is used in a wide range of applications such as water, water treatment and irrigation. Cast iron Y strainer flanged PN10/16 for filtration of water distribution, water treatment and irrigation networks. Strainer with removable filter and bolted bonnet Threaded BSP draining cap allowing to install a draining valve. SPECIFICATIONS : • - Removable stainless Steel filter • - R.F. flanges PN10/16 • - Horizontal or vertical position with descendant fluid (respect the flow direction indicated by the arrow ) • - Mesh : see tab page 4 • - Bolted bonnet with drainmg cap threaded BSP • - Alkyd painting color grey RAL 7011.100 pm thickness USE : • - For water distribution, watenng. irrigation • - Min Température Ts : - 10°C • - Max Température Ts :+ 120°C • - Max Pressure Ps : 16 bars up to DN200.10 bars over RANGE : • R.F. flanges PN10/16 from DN 15 to 300. PN10 over
