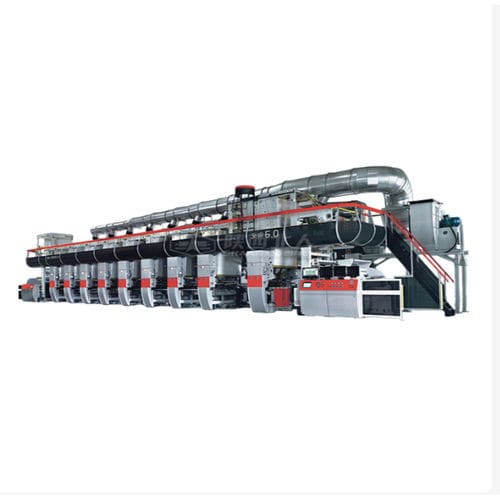

Rotogravure printing press

for plastic filmfor labelsfor packaging

Product overview

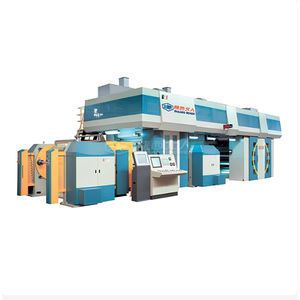

The Shaanxi Beiren Environmentally Friendly Rotogravure Printing Machine combines 60+ years of gravure experience with targeted environmental technologies to deliver high-speed, high-precision rotogravure printing while minimizing VOC emissions and energy use. Designed for flexible packaging and label production using water-based and NTNK solvent inks, the machine is validated in thousands of installations worldwide.

Highlights

• Eco-compatible inks: supports water-based and NTNK solvent inks to reduce VOC emissions.
• Energy-saving drying: heat-pump technology with hot-air recycling reduces thermal consumption up to 30%.
• Precision drive: Electronic Line Shaft (ELS) with individual servo-driven cylinders for high register stability.
• High registration: register accuracy ≤ ±0.1 mm.
• Material range: processes mono-material films, biodegradable substrates and ultra-thin films down to 10 µm.

Key functional features
ELS drive eliminates mechanical main shafts, lowering mechanical loss, vibration and maintenance needs. The intelligent drying system couples heat-pump technology with high-velocity drying nozzles and hot-air recycling loops to dry water-based inks effectively while saving energy. Integrated LEL monitoring and designated RTO connection points enable real-time solvent management and thermal treatment of captured emissions.

Material & application capabilities
Supported printing materials:

• OPP, BOPP, CPP
• PE and PET films
• PVC and NY materials
• Biodegradable substrates such as PLA

The machine handles heat-sensitive substrates (e.g., MDO-PE, BOPE) without thermal distortion and supports recyclable mono-PE food packaging, pharmaceutical blister packaging and biodegradable labels with controlled tension and zonal drying.

Quality assurance & testing
Manufacturing and QA include dedicated machining for key components and comprehensive validation for each unit. Typical tests:

• Gas chromatography for residual solvent verification
• Registration accuracy validation under operational conditions
• Energy efficiency audits to confirm real-world savings
• VOC leakage inspections and emission control verification

Key technical specifications

• Brand: Shaanxi Beiren
• Model name: Environmentally Friendly Rotogravure Printing Machine
• Supported substrates: OPP, BOPP, CPP, PE, PET, PVC, NY, PLA
• Register accuracy: ≤ ±0.1 mm
• VOC emission reduction: up to 95%
• Thermal energy reduction: up to 30%
• Minimum film thickness: 10 µm
• Residual solvent level: < 5 mg/m²
• Drive system: Electronic Line Shaft (ELS) with individual servo motors
• Drying: heat-pump + high-velocity nozzles; hot-air recycling
• Emission controls: integrated LEL monitoring; RTO integration points
• Typical delivery/installation: 90–120 days depending on customization

Advanced technology details

• Intelligent drying system: heat pump combined with hot-air recycling and optimized nozzles for water-based inks.
• Precision drive technology: servo motors for each cylinder ensuring consistent register control.
• Safety & emission control: LEL monitoring and RTO-ready design for thermal treatment of captured solvents.
• Material handling: multi-motor pressure control to manage ultra-thin films down to 10 µm with minimal stretching.

Real-world applications

• Sustainable food packaging: printing on recyclable mono-PE structures with controlled tension and pressure.
• Pharmaceutical packaging: compatible with barrier coatings and solvent-free maintenance for blister and sachet films.
• Biodegradable labels: printing on PLA or PET-G with zonal drying and chill-roll support to preserve rewind quality.
