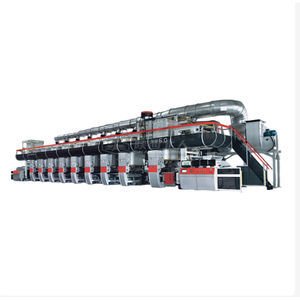

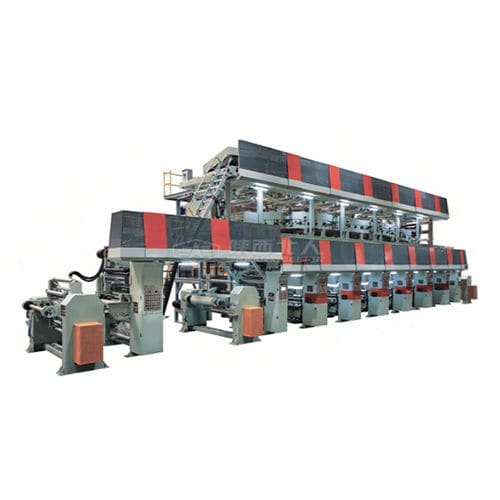

Rotogravure printing press

for paperfor labelsfor packaging

Overview
Registration accuracy ≤±0.1 mm. High-speed rotogravure system for multi-color continuous production on films, paper and foils. Suitable for flexible packaging, labels and decorative printing where fine detail and consistent color are required.

Product and Manufacturer
Manufactured by Shaanxi Beiren Printing Machinery Co., Ltd., this rotogravure printing machine is designed for long production runs and a wide range of substrates while maintaining precise registration and stable print quality.

Key advantages
Precision and synchronization
Electronic line shaft and synchronized drives ensure consistent color alignment across long runs and multiple color units.

Key Technical Specifications

• Registration Accuracy: ≤±0.1 mm (longitudinal and lateral)
• Mechanical Speed: 250–600 m/min (model dependent)
• Web Width Range: 600 mm–2500 mm
• Color Units: 2–12 colors (customizable)
• Cylinder Circumference: 400 mm–1300 mm (variable repeats)
• Tension Control System: 7–9 motor vector drive closed-loop
• Tension Range: 3 kg–50 kg
• Residual Solvent: <5 mg/m²
• Minimum Film Thickness: 12 micron capability

Substrate versatility

• Plastic films: BOPP, PET, PE with reliable ink adhesion
• Paper materials: various weights and finishes
• Metal foils: aluminum and specialty foils
• Composite materials: multi-layer structures

Drying system

• Multi-zone high-efficiency drying chambers
• High-velocity hot air nozzles and thermal oil systems for uniform heat
• Energy recovery features to reduce consumption
• LEL monitoring for workplace safety

Intelligent control systems

• Automatic Viscosity Control (AVC) for consistent ink rheology
• Ultrasonic web edge guides for micron-level tracking
• Electronic Line Shaft (ELS) for full-unit synchronization

Durability and color reproduction
Chrome-plated cylinders and adjustable 3-axis doctor blade assemblies deliver stable ink transfer, fine screening (175+ lpi) and controlled ink laydown for high gloss and saturation.

Production efficiency

• Independent turret unwind/rewind with auto-splicing for non-stop operation
• Rapid job changeovers via efficient cylinder mounting systems
• Optimized for short production cycles and high uptime

Shaanxi Beiren — Heritage & manufacturing
Shaanxi Beiren Printing Machinery Co., Ltd. combines long-term R&D and in-house precision manufacturing with experienced engineering to support high-volume gravure production.

Comprehensive support
Offers operator training, on-site installation and commissioning, maintenance support, process optimization consulting and spare parts supply to minimize downtime.

Applications

• Flexible packaging: snacks, confectionery, pet food
• Label production: premium labels and detailed artwork
• Decorative printing: wallpapers, laminates, gift wrap
• Publication gravure: high-volume magazines and inserts

FAQ (selected)

• Q: Minimum order quantity? A: Machines are typically sold as single units and configurable with 2–12 color units.
• Q: Installation time? A: Installation and commissioning typically take 2–4 weeks depending on configuration and site conditions.
• Q: Post-sale support? A: Includes on-site training, maintenance training, process optimization and spare parts availability.
• Q: Substrate range and minimum thickness? A: Handles BOPP, PET, PE, paper, metal foils and composites; minimum film thickness down to 12 microns depending on model.

Technical specifications

• Registration Accuracy: ≤±0.1 mm
• Mechanical Speed: 250–600 m/min
• Web Width Range: 600–2500 mm
• Color Units: 2–12 (customizable)
• Cylinder Circumference: 400–1300 mm
• Tension Control: 7–9 motor vector drive closed-loop
• Tension Range: 3–50 kg
• Residual Solvent: <5 mg/m²
• Minimum Film Thickness: 12 microns
