Overview

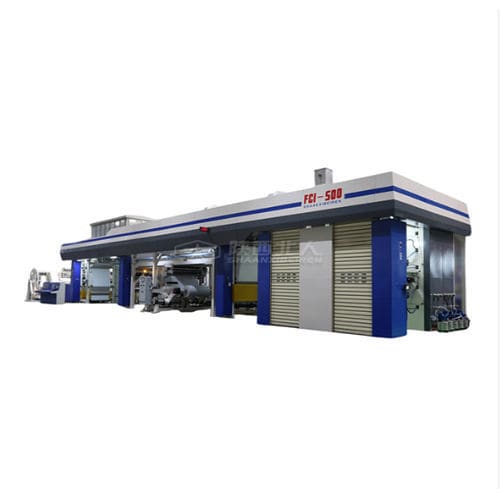

The Satellite flexographic printing machine from Shaanxi Beiren Printing Machinery Co., Ltd. is a central impression (CI) press engineered for high-precision flexible packaging and label production. The CI configuration locks the web against a large-diameter central drum to reduce web movement and registration errors typical of inline systems. It is suited to multi-layer films, heat-sensitive substrates and shrink-sleeve applications.

Key product data

• Type: Satellite flexographic printing machine
• Printing width: 390 mm - 800 mm
• Printing materials: thin film, non-woven, paper
• Target industries: flexible packaging, label printing
• Maximum speed: 500 m/min
• Color configurations: 4, 6, 8, 10 colors

Performance and accuracy
The CI design maintains stable web tension and controlled drum temperature, delivering color-to-color registration within ±0.1 mm at speeds up to 500 m/min. The central drum support minimizes stretching and tearing on sensitive substrates such as LDPE, BOPP and breathable films.

Applications

• Flexible packaging: multi-layer films for stand-up pouches, frozen food bags and snack wrappers.
• Hygiene & personal care: ultra-thin breathable films (12–15 µm) for diapers and sanitary products where substrate integrity is critical.
• Labels & shrink sleeves: reverse printing on PVC, PETG and OPS shrink films with heavy ink coverage and controlled shrink performance.

Engineering and drive technology
The machine features a double-wall, temperature-controlled central impression drum machined to micron-level tolerance (Total Indicated Runout (TIR) < 0.01 mm). Gearless direct-drive servo systems provide independent drives for each plate cylinder and anilox roller, eliminating backlash and enabling flexible print repeat lengths.

Ink management and drying
Closed-chamber carbon-fiber doctor blade units ensure consistent ink transfer for solvent-based, water-based and UV inks. Integrated high-velocity hot-air drying tunnels and inter-color dryers improve curing efficiency and permit high-speed use of water-based systems.

Manufacturing, quality and reliability
Produced by Shaanxi Beiren Printing Machinery Co., Ltd. in a 30,000 m² assembly facility with over 60 years of experience, the machine is designed for continuous operation; with correct maintenance the central drum life is expected to exceed 20 years.

Rigorous quality control

• Central drum runout verification (< 0.010 mm)
• Dynamic registration tests at maximum speed
• Vibration and frame-rigidity analysis
• Drying efficiency and solvent retention checks
• Changeover speed validation

Operational benefits

• Faster job changeovers using sleeve technology and auto-registration (example: under 15 minutes for 8-color jobs).
• Improved energy efficiency via integrated drying with heat recovery and reduced VOC emissions.
• Lower material waste and greater production flexibility thanks to gearless servo drives and precise registration.

Technical specifications

• Machine type: Satellite flexographic printing system
• Printing width: 390 mm - 800 mm
• Maximum speed: 500 m/min
• Color configurations: 4, 6, 8 or 10 colors
• Printing materials: thin film, non-woven, paper
• Registration accuracy: ±0.1 mm
• Target industries: flexible packaging, label printing
• Central drum TIR: < 0.01 mm
• Temperature control: double-walled drum with chiller/heater maintaining approx. 30–35 °C
• Drive system: gearless direct-drive servo, independent drives per cylinder
• Doctor blade: closed-chamber carbon-fiber system
• Substrate handling: designed to minimize stretching/tearing of heat-sensitive and ultra-thin films
