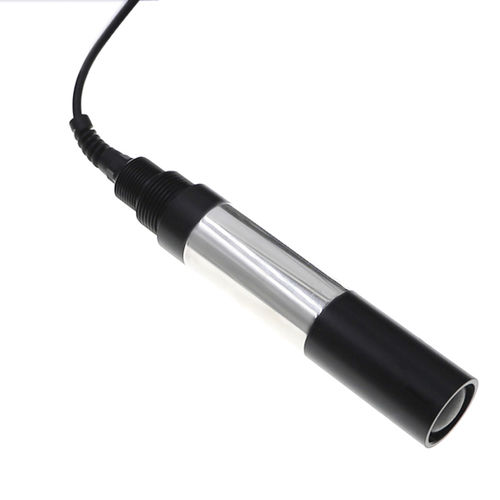

ORP transmitter ORP

ORP Intelligent ORP Sensor Technical Parameters • Measuring range:-2000.... .2000mV • Temperature measurement range:O.O... .70.Ot: • Slope:2960/0 • Housing material:PBT anticorrosion. PC • Liquid interface:polytetrafiuoroethylene • Connecting thread:G3/4.M39'1.5 • Signal cable length:5m(customized) • Withstand pressure range:O...4bar • Housing protection Grade: IP68 • Output:4.... .20mA or RS485 Pre-use Instructions • Please study these instructions carefully before use. • The instructions apply to the Smart ORP Series electrodes. • Sensor sensitive membrane bulb is a perishable product, once damaged will not be able to be repaired. • Before opening the package, please check v,hether there is any damage to the package. If the package is damaged, please do not open the package, but please contact the sales company. the nearest agent or us directly. When the representative of the transporting amves, please open the package together to check whether the electrodes are damaged or not, and it is recommended to take photos for evidence. • If the package is intact but the electrode is damaged, please contact the sales company, the nearest authorized agent or us directly, and send the electrode Vith the original package back.
