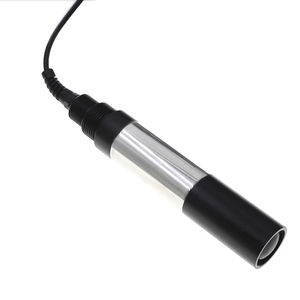

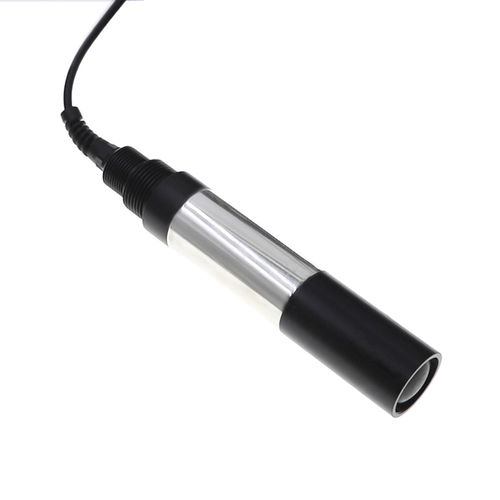

Water pH sensor SE-ISEP10-G

multi-parameterRS-485Modbus RTU

1 .Specification • Measure range:0... 14PH • Temperature measurement range: 0.0...80.0°C ,0.0...60.0°C • Slope: 296% • Zero potential: 7.00±25 • Housing material: PCs PBT anti-corrosion • Liquid junction: Polytetrafluoroethylene • Thread: M39'1.5, G3/4 • Signal cable length: 5m (customizable) • Withstand pressure range: O...4bar • Membrane resistance: < 500MQ • Housing protection Grade: IP68 • Output signal: RS485(Modbus RTU), 4&20mA 2.Pre-use instructions 2.1 The instructions apply to the PH series electrodes and should be read carefully before using. 2.2 The sensor sensitive membrane bulb is a fragile product. once damaged, it will not be repaired. 2.3 Before opening the package, please check whether there is any damage to the package. If the outer packaging has been damaged, please do not continue to open the packaging. Please immediately contact us directly, the representative of the transport side to the scene to jointly open the packaging to check Whether the electrode is damaged, and it is recommended to take pictures for evidence. 2.4 If the outer package is intact but the electrode is damaged, please directly with us immediately and send the electrode back in its original packaging. 2.5 Do not store the electrode in vaporized or deionized water. 2.6 During the measurement process, if there is dirt, adhesion or scale at the sensitive membrane bubble of the electrode, it will lead to inaccuracy or fluctuation of the measurement value, it should be cleaned and calibrated in time.
