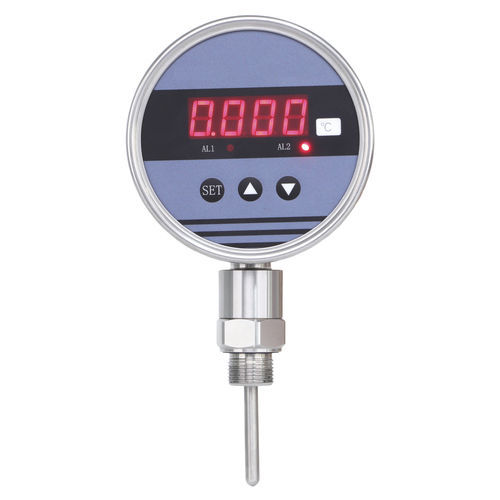

Temperature controller with LED display STK01

analogelectronicwater

2/4 Relays Accuracy: ±0.5%FS Features • 100mm standard instrument installation • 4-digit LED display, no visual error • Field setting of control points • 4 20mA standard signal output (optional) • The upper and bwer limits of temperature alarm can be set to any temperature data within the effective temperature range. • Integrates function of temperature display, • measurement and control output. • 24VDC or 220VAC power supply optional Introduction STKOI Temperature Controller is a temperature measurement and control product integrating temperature measurement. display. output and control. The product is of full electronic structure. The front end adopts imported platinum resistance temperature sensor, which is converted by high-precision A / D, processed by microprocessor. displayed on site. and outputs one analog quantity and t,vo relay signals. The intelligent temperature controller has the advantages of flexible use, simple operation, easy debugging, safety and reliability It is widely used in hydropower, tap water, petroleum, chemical industry, machinery, hydraulic and other industries to measure. display and control the temperature of fluid medium.
