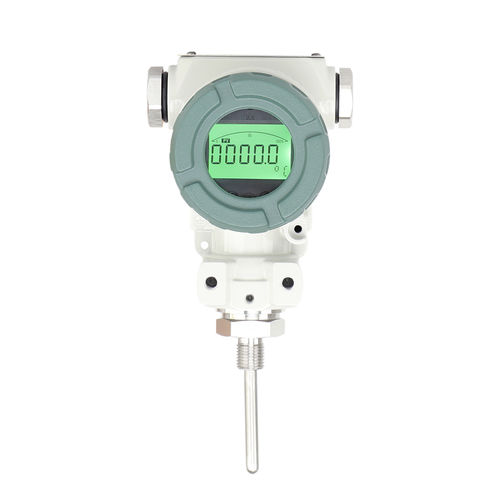

Temperature transmitter with digital display ST22

probe head-mountedPt100Pt1000

Temperature Transmitter with Local Display Output: 4-20mA. RS485 Accuracy: ±0.5%FS Introduction ST22 Temperature transmitter use PTIOO/PTIOOO temperature sensor as the sensing element, signal is amplified into standard signal such as 4-20mA, RS485 etc. There are linear correction circuit applied in the transmitter, make sure the entire transmitter has very good accuracy. Characteristics • Easy mounting, no need for maintenance. • Liquid/gas all available. • Multiple output signal optional. • Quick response, good accuracy • Excellent long-term stability • Different process connection available Specification • Mounting: Insert probe 50mm(typical), can be as customer's requirement. • Probe diameter: 6mm, 8mm, 10mm, 12mm • Sensor: PT100/PT1000 • output signal: 4-20mADC, RS485 • Power supply: 12-30VDC • Accuracy: ± 0.5% FS • Response time: T=5°C 2.3s, T=90°C 5.4s. • Reverse polarity protection: YES • Working temperature: -40~+85°C • Case material: SS • Wetted parts material: SS • Protection: IP67
