Geothermal drilling rig HQZ1000L
water wellcrawlerrotary

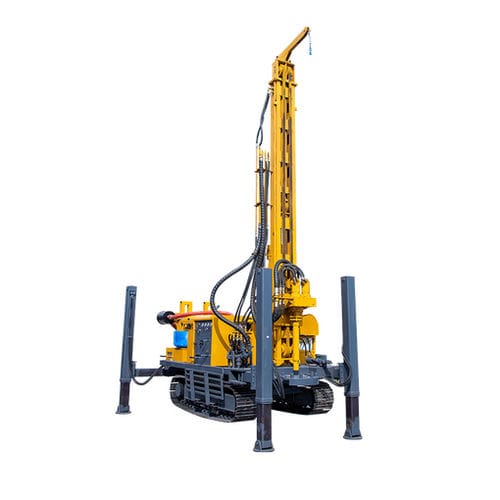

Geothermal drilling rig - HQZ1000L - Shandong Hengwang Group Co., Ltd. - water well / crawler / rotary
Geothermal drilling rig - HQZ1000L - Shandong Hengwang Group Co., Ltd. - water well / crawler / rotary
Add to favorites
Compare this product


Characteristics

Applications
geothermal, water well
Mobility
crawler
Drilling unit
rotary
Other characteristics
pneumatic
Drilling diameter

Max.: 350 mm
(14 in)

Min.: 130 mm
(5 in)

Drilling depth

500 m
(1640'05" )

Overall length (working)

6,000 mm
(236 in)

Overall width (working)

2,200 mm
(87 in)

Overall heigth (working)

2,950 mm
(116 in)

Machine weight

11.5 t
(12.7 us ton)

Motor power

118 kW
(160.44 hp)

Hydraulic working pressure

2 MPa, 4 MPa

Max driving speed

3 km/h
(2 mph)

Description

HQZ Series Water Well Drilling Rig is a lightweight, efficient, and versatile drilling equipment mainly used for industrial and civil well drilling, as well as geothermal drilling. It features a compact structure, fast drilling, flexible mobility, and wide applicability, especially suitable for water extraction in mountainous and rocky terrains. This drill rig can perform drilling in various geological conditions, utilizing advanced hydraulic technology, large torque hydraulic motor for rotation, and a large cylinder diameter hydraulic cylinder for propulsion. A well-known multi-cylinder engine provides power for the hydraulic system, with a two-stage air filter and air compressor intake design to extend the diesel engine's lifespan. The unique pump group design facilitates maintenance, reducing repair costs. The centrally controlled hydraulic console makes operation convenient. This series of drills adopts an excavator crawler chassis with strong off-road performance. The independent modular design allows the drill rig to be mounted on a truck, enhancing its maneuverability. Two-speed rotation and propulsion speeds meet different drilling needs in soil and rock layers. The combination positioning device can be adjusted and replaced according to different types of drill rods and impactors, ensuring accurate and reliable positioning. The winch mechanism facilitates the lifting of drill rods and impactors, reducing labor intensity.
