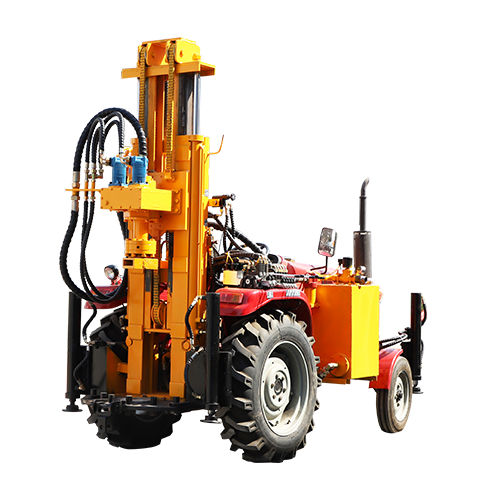

Tractor-mounted drilling rig TQZ-260
water wellwheeledrotary

Tractor-mounted drilling rig - TQZ-260 - Shandong Hengwang Group Co., Ltd. - water well / wheeled / rotary
Tractor-mounted drilling rig - TQZ-260 - Shandong Hengwang Group Co., Ltd. - water well / wheeled / rotary
Tractor-mounted drilling rig - TQZ-260 - Shandong Hengwang Group Co., Ltd. - water well / wheeled / rotary - image - 2
Tractor-mounted drilling rig - TQZ-260 - Shandong Hengwang Group Co., Ltd. - water well / wheeled / rotary - image - 3
Tractor-mounted drilling rig - TQZ-260 - Shandong Hengwang Group Co., Ltd. - water well / wheeled / rotary - image - 4
Tractor-mounted drilling rig - TQZ-260 - Shandong Hengwang Group Co., Ltd. - water well / wheeled / rotary - image - 5
Tractor-mounted drilling rig - TQZ-260 - Shandong Hengwang Group Co., Ltd. - water well / wheeled / rotary - image - 6
Add to favorites
Compare this product


Characteristics

Applications
water well
Mobility
wheeled, tractor-mounted
Drilling unit
rotary, down-the-hole
Other characteristics
hydraulic, diesel engine
Sector
construction, industrial
Drilling diameter

Max.: 254 mm
(10 in)

Min.: 130 mm
(5 in)

Drilling depth

260 m
(853'00" )

Overall length (working)

3,800 mm
(150 in)

Overall width (working)

1,700 mm
(67 in)

Overall heigth (working)

2,700 mm
(106 in)

Machine weight

4 t
(4.4 us ton)

Motor power

50 ch
(50 hp)

Hydraulic working pressure

2 MPa, 3 MPa

Description

This product combines a tractor with a pneumatic water well drilling machine, forming an integrated drilling equipment unit that combines pneumatic drilling with a tractor. This integration facilitates mobility and the combination with an air compressor, making construction more convenient and efficient. The tractor-mounted pneumatic water well drilling machine adopts a new type of down-the-hole impact technology, equipped with a large torque hydraulic motor for rotation and a large cylinder diameter hydraulic cylinder for propulsion. A well-known multi-cylinder engine provides power for the hydraulic system, with a two-stage air filter and air compressor intake design to extend the diesel engine's lifespan.
