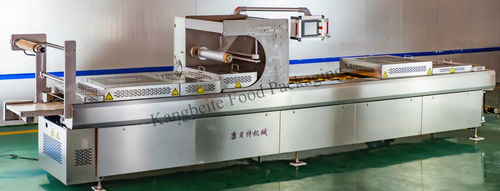

Roll-fed thermoformer TVS series
for packagingautomaticvacuum

roll-fed thermoformer
roll-fed thermoformer
roll-fed thermoformer
roll-fed thermoformer
roll-fed thermoformer
roll-fed thermoformer
Add to favorites
Compare this product


Characteristics

Type
roll-fed
Applications
for packaging
Operational mode
automatic
Other characteristics
vacuum, high-speed, compressed air
Film width

Max.: 500 mm (20 in)

Min.: 200 mm (8 in)

Maximum depth of draw

Max.: 50 mm (2 in)

Min.: 5 mm (0 in)

Forming area x

Max.: 480 mm (19 in)

Min.: 200 mm (8 in)

Forming area y

Max.: 480 mm (19 in)

Min.: 200 mm (8 in)

Description

The thermoforming vacuum skin packaging machine is the equipment for automatic and high-speed VSP vacuum skin packaging in automatically formed rigid skin pack trays. The top skin pack film sticks to the surface of the product, gives a perfect 3D presentation which is more attractive than usual packaging methods. Both the rigid bottom forming film and soft flexible top skin pack film are specially made, we recommend you find a reliable supplier for these films because they are different from ordinary thermoforming films for vacuum packaging. The machine is fully customizable. We design the mold according to product size and shape. The machine size is determined by mold design and customer’s request. The machine specifications below are for reference only. The machine is customizable. Model No.:TVS420 Top sealing film width:395 mm Bottom forming film width:422 mm Power supply:380V/415V, 480V, 3Phase, customizable Total power:15 KW Compressed air:>0.6 MPa Cooling water:>0.15 MPa Machine size:7000*850*1800 mm Machine weight:1800 KGs Vacuum pump:63m3/h + 240 m3/h Packing speed:5-6 cycles/minute
