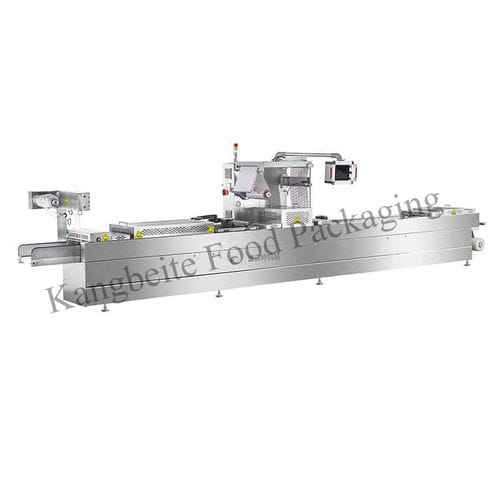

Roll-fed thermoformer DRZ series
for food packagingautomaticcompressed air

roll-fed thermoformer
roll-fed thermoformer
roll-fed thermoformer
roll-fed thermoformer
roll-fed thermoformer
roll-fed thermoformer
roll-fed thermoformer
roll-fed thermoformer
Add to favorites
Compare this product


Characteristics

Type
roll-fed
Applications
for food packaging
Operational mode
automatic
Other characteristics
vacuum, industrial, high-speed, compressed air, in-line
Film width

Max.: 720 mm (28 in)

Min.: 220 mm (9 in)

Maximum depth of draw

Max.: 100 mm (4 in)

Min.: 1 mm (0 in)

Forming area x

Max.: 700 mm (28 in)

Min.: 200 mm (8 in)

Forming area y

Max.: 700 mm (28 in)

Min.: 200 mm (8 in)

Description

Rollstock/Thermoforming Packaging Machine for Automatic Vacuum/MAP Modified Atmosphere Packaging/VSP Vacuum Skin Packaging The thermoforming packaging machine is one of the most favorite packing equipment for food and non-food business. The flexible packaging mechanism gives thermoforming packaging machines the ability to fulfill various needs of packaging types and sizes. With the use of top sealing film and bottom forming film, and tailor-designed molds. Thermoforming packaging machine regular specifications for reference. Please be noted that the machine can be customized according to your unique request. Model No.:DRZ320 Top sealing film widt:295 mm Bottom forming film width:322 mm Power supply:380V/415V, 480V, 3Phase, can customize Total power:13 KW Compressed air:>0.6 MPa Vacuum degree:0.6 MPa Vacuum degree:0.6 MPa Vacuum degree:<0.1 mbar Machine size:7500*1050*1800 mm mm Machine weight:1800 KGs Vacuum pump:(China brand or BUSCH) 200/240 m3/h Packing speed:5-8 cycle/minute

VIDEO
