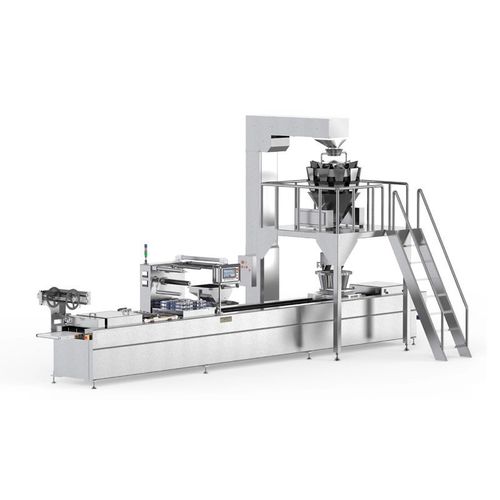

Automatic packaging machine DRZ520
vacuumfor the food industryfor the medical industry

automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
automatic packaging machine
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Type
vacuum
Domain
for the food industry, for the medical industry, for the cosmetics industry, for the pharmaceutical industry, for hygiene products, for the textile industry, for the chemical industry, for electronics
Other characteristics
high-speed, flexible, high-rate, multipack, pneumatic, with sealing, with conveyor, with modified atmosphere packaging, large-format, rigid, all-in-one
Throughput

Min.: 30 p/min

Max.: 300 p/min

Description

Rollstock/Thermoforming packaging machine for vacuum packaging in flexible plastic/aluminum foil packages. Medium to large production capacity DRZ520 series. The machine specifications below are for reference only. The machine is customizable. Model No.:DRZ520 Top sealing film width:495 mm Bottom forming film width:522 mm Power supply:380V/415V, 480V, 3Phase, can customize Total power:18 KW Compressed air:>0.6 MPa Cooling water:>0.15 MPa Vacuum degree:<0.1 mbar Machine size:7500*950*1800 mm Machine weight:1800 KGs Vacuum pump:200/240m3/h Packing speed:5-7 cycles/minute
