- Shandong laien optic-electronic technology co.,ltd.

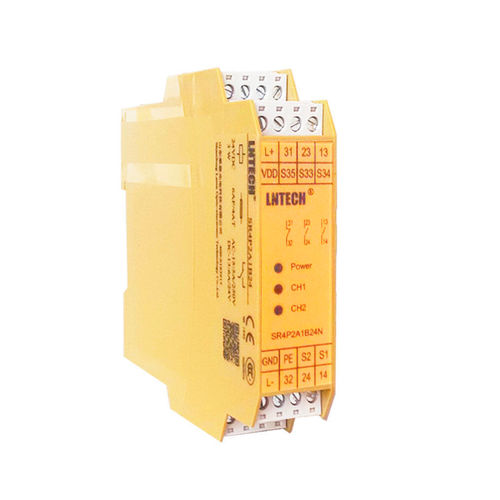

Power protection relay SR2P4A24safetylevelIEC
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- power, safety, level
- Norms
- IEC
- Other characteristics
- compact
Description
product details
Features:
Compact structure
Can detect input contacts’ short
Can select the manual&automatic reset
Self-monitoring redundancy circuit
LED indicators to show the running and faults state
With removable terminals
Parameters:
Model - SR2P4A24
Power supply - DC24V
Power consumption - 3W
Output contacts - 4N/O
Switch capacity - AC-15,5A/250V; DC-13,6A/24V
Release time - 99%
MTTFd - 111a
PFHd - 2.5×10-8
Sealing level - IP50
Operation Temp. - -10 ~＋55℃
Storage Temp. - -40 ~＋85℃
Max.cable size - Max. 2.5mm2
Max.cable length - Max. 100m
Dimension - 96(L)×22.5(W)×116(H)mm
Standards - EN 60947-5-1, EN 61000-6-2, EN 61000-6-3, IEC/EN 60204-1, EN ISO 13849-1
