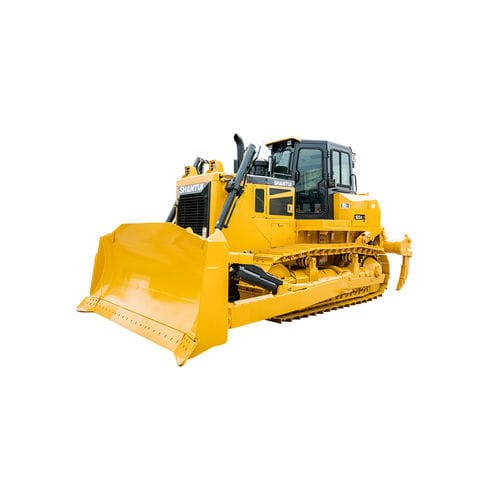

Crawler bulldozer SD24-C3 XL

for construction

Configuration selling point The chassis system is built to be durable and paired with Weichai WP12 engine, yielding perfect match between the drive system and the engine. Shantui four wheels and one track, inherited from Shantui’s mature machines, are built to be reliable. Ease of maintenance and operation comfort The side guard features dual-sided opening for easy access. The hydraulic system’s working valves are externally positioned. The transmission and steering filter elements are centrally arranged, facilitating easy maintenance. The cab is designed with ergonomic considerations to create a low-noise environment. Adaptability to diverse working conditions The machine offers the option to equip a semi-U blade, providing enhanced adaptability. With its long ground contact length, large ground clearance, and stable travel, it delivers excellent passability; Engine brand - WEICHAI Machine external dimensions(mm) - 5976*3640*3460 Track center distance(mm) - 2000 Track shoe width(mm) - 560/610/660 Ground contact length(mm) - 3050 Fuel tank capacity(L) - 450 Blade type - Semi-U blade Blade capacity(m³) - 6.5 Emissions (Indicated as per international standards) - Eu stageⅢA
