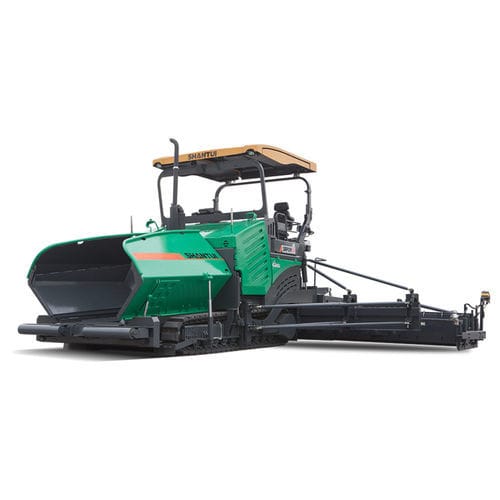

Asphalt paver SRP09-C5 MA

wheeledfor construction equipmentmachine

Configuration selling point The machine is equipped with the Linde hydraulic system and a dedicated engine, delivering the highest traction in the industry, outstanding construction quality and exceptional efficiency. Shantui four wheels and one track ensure exceptional low-speed stability and superior reliability. Ease of maintenance and operation comfort The front hood features a wide opening angle and the filter elements are all located externally, simplifying maintenance with improved efficiency. The extendable canopy and rotatable seat enable better observation of material conveying and distribution actions. Adaptability to diverse working conditions Equipped with a robust mechanical screed plate, the machine is versatile enough to handle both water-stabilized and asphalt working conditions, making it well-suited for the construction of base and surface layers on highways of different grades. Maximum paving thickness(mm) - 500 Engine power(kW) - 213 External dimensions - 7000*9500*3950 Engine model - SC9DF290.1G3 Overall weight(T) - 30 Paving speed(m/min) - 0-25 Travel speed(km/h) - 0-3 Theoretical productivity(T/h) - 1000 Hopper capacity(T) - 16 Emissions(Indicated as per international standards) - Eu stage IIIA
