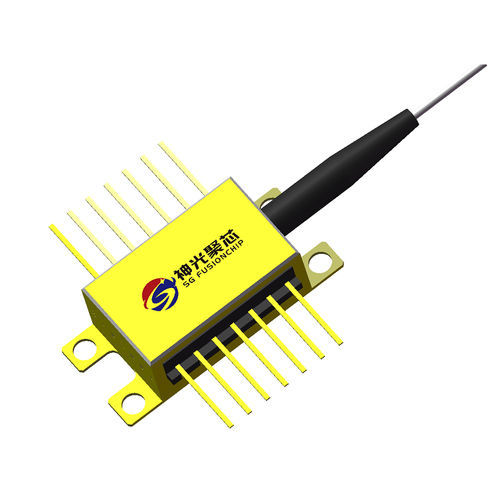

CW laser diode SGSLD-1550-XX-XX-XX-14-HfiberNIRinstrumentation
Add to favorites
Compare this product
Characteristics
- Operational mode
- CW
- Technology
- fiber
- Spectrum
- NIR
- Applications
- instrumentation, measurement
- Other characteristics
- high-power
- Power
Max.: 20 W
Min.: 1 W
- Wavelength
1,550 nm
Max.: 1,570 nm
Min.: 1,530 nm
Description
Features:
a. High power output
b. Metal-coupled and hermetic package
c. Spectral modulation of <1dB
d. 14-pin BTF package
e. Single-mode/PM fiber pigtail ＞1M
Applications
a. Fiber Optic Gyroscope
b. Optical Test Instrument
c. Fiber Optic Sensors
d. Fiber Optic Communications
e. Optical Coherence Tomography
f. Biomedical Imaging Device
g. Clinical Healing Equipment
