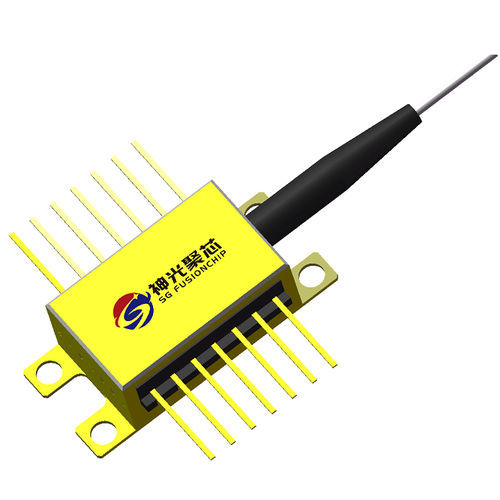

CW laser diode SGSLD-1550-XX-XX-XX-14-HBfiberNIRinstrumentation
Add to favorites
Compare this product
Characteristics
- Operational mode
- CW
- Technology
- fiber
- Spectrum
- NIR
- Applications
- instrumentation
- Other characteristics
- high-power
- Power
Max.: 10 W
Min.: 1 W
- Wavelength
Max.: 1,570 nm
Min.: 1,520 nm
1,550 nm
Description
Features:
a. Typical Ex-fiber output power of 10mW
b. Typical 3dB bandwidth of 85nm
c. Spectrum covers 1510-1590nm bandwidth -25dBm/0.1nm resolution
d. Spectral modulation of <1dB
e. 14-pin BTF package
f. Single-mode/PM fiber pigtail ＞1M
Applications
a.Fiber Optic Gyroscope
b. Optical Test Instrument
c. Fiber Optic Sensors
d. Fiber Optic Communications
e. Optical Coherence Tomography
f. Biomedical Imaging Device
g. Clinical Healing Equipment
