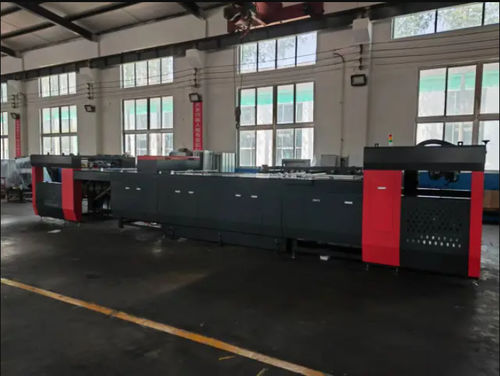

Plate conveyor system

industrialtransportsolid waste

Feeding roll-table, iron printing feeder, positioning(including double sheet rejection), ink-jet platform, ink-jet coding system (optional, or optional laser coding system), led UV curing (optional, matching according to ink type), image system(optional),rejection/ sampling table, receiving machine, receiving roller deck, etc. The system is widely used in metal plate packaging industries such as iron printing, can making, lid making, etc Variable data coding and printing inspection, adopting modular design, can expand more applications. Main technical parameters Maximum sheet metal conveying speed 80 m/min Maximum sheet metal width 1150 (width) × 1020mm Minimum metal plate width 680 (width) × 712mm Metal plate thickness 0.16-0.6mm Total power of the platform 31KW (excluding led UV) led UV curing system (optional) According to customer requirements Positioning accuracy Width accuracy ± 0.20 mm Overall dimension (length × wide × Height) 1900 × 160 × 180 cm
